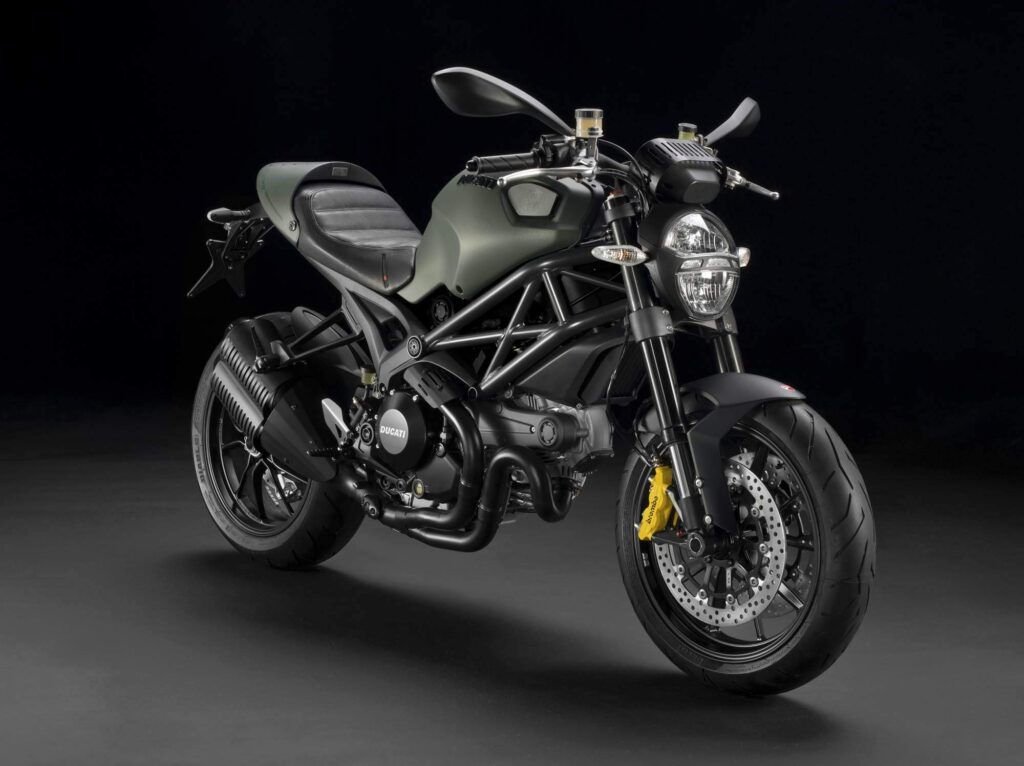

2012 Ducati Monster 1100 Diesel Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Ducati Monster 1100 Diesel.

Basic Specs

Year2012
MakeDucati
ModelDucati Monster 1100 Diesel
Cost

Engine

Displacement1078.00 ccm (65.78 cubic inches)
TypeType L-Twin cylinder
DetailsV2, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke98.0 x 71.5 mm (3.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. Siemens electronic fuel injection, 45mm throttle body
Ignition
ExhaustLightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multiplate with hydraulic control
DrivelineChain; Front sprocket 15; Rear sprocket 39

Performance

Horespower100.00 HP (73.0 kW)
Torque103.06 Nm (10.5 kgf-m or 76.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.50 litres (3.57 gallons)
Emissions

Chassis

Frame TypeTubular steel Trellis frame
Rake24.0°
Trail
Front SuspensionMarzocchi 43mm fully adjustable usd forks
Front Travel130 mm (5.1 inches)
Rear SuspensionProgressive with preload and rebound Sachs adjustable monoshock
Rear Travel148 mm (5.8 inches)
SeatDual seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,450 mm (57.1 inches)
Dry Weight169.0 kg (372.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. 4-piston radial calliper with ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-piston radial calliper with ABS
Rear Brake Diameter245 mm (9.6 inches)
Wheels10-spoke in light alloy

Comments

It appears you're interested in specifications for the Ducati Monster 1100 Diesel. This Naked bike model is powered by a Type L-Twin cylinder V2, four-stroke engine with 1078.00 ccm (65.78 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Injection. Siemens electronic fuel injection, 45mm throttle body allowing this machine to produce its 100.00 HP (73.0 kW) horsepower and 103.06 Nm (10.5 kgf-m or 76.0 ft.lbs) torque. According to our records engine heat of the Ducati Monster 1100 Diesel is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular steel Trellis frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston radial calliper with ABS front brakes and Single disc. 2-piston radial calliper with ABS rear brakes. The Ducati Monster 1100 Diesel was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
