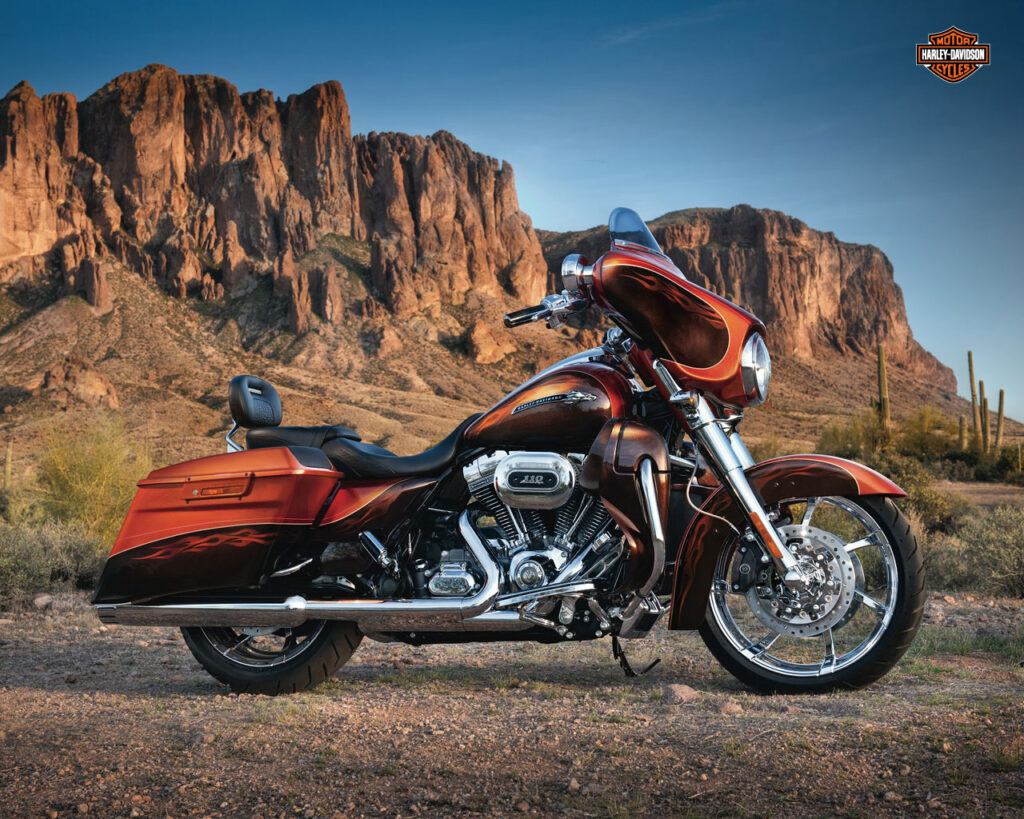

2012 Harley-Davidson FLHXSE3 CVO Street Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Harley-Davidson FLHXSE3 CVO Street Glide.

Basic Specs

Year2012
MakeHarley-Davidson
ModelHarley-Davidson FLHXSE3 CVO Street Glide
Cost

Engine

Displacement1802.69 ccm (110.00 cubic inches)
TypeAir-cooled, Twin Cam 110™
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.3 mm (4.0 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome dual exhaust with 4in. touring mufflers with custom end caps
LubricationPressurized, dry-sump with oil cooler
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchHydraulically actuated, 9-plate wet with high performance spring
DrivelinePrimary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio

Performance

Horespower
Torque160.01 Nm (16.3 kgf-m or 118.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.74 litres/100 km (17.4 km/l or 40.98 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions133.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeMild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3 mm telescopic with blow-by valve
Front Travel117 mm (4.6 inches)
Rear SuspensionHydraulic, adjustable
Rear Travel51 mm (2.0 inches)
SeatCustom low profile, solo leather touring seat with an embossed pattern
Seat Height673 mm (26.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,443 mm (96.2 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight372.0 kg (820.0 pounds)
Wet Weight389.2 kg (858.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-B19
Rear Tire/Tyre180/55-B18
Front BrakesDouble disc. 4-piston calipers. ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston caliper. ABS.
Rear Brake Diameter300 mm (11.8 inches)
WheelsMirror Chrome Agitator Custom Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLHXSE3 CVO Street Glide. This Custom / cruiser model is powered by a Air-cooled, Twin Cam 110™ V2, four-stroke engine with 1802.69 ccm (110.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 160.01 Nm (16.3 kgf-m or 118.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLHXSE3 CVO Street Glide is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/60-B19 and the rear is 180/55-B18 . The entire package is supported by the frame, Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston calipers. ABS. front brakes and Single disc. 4-piston caliper. ABS. rear brakes. The Harley-Davidson FLHXSE3 CVO Street Glide was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

CVO is ab abbreviation of HD´s Custom Vehicle Operations.
