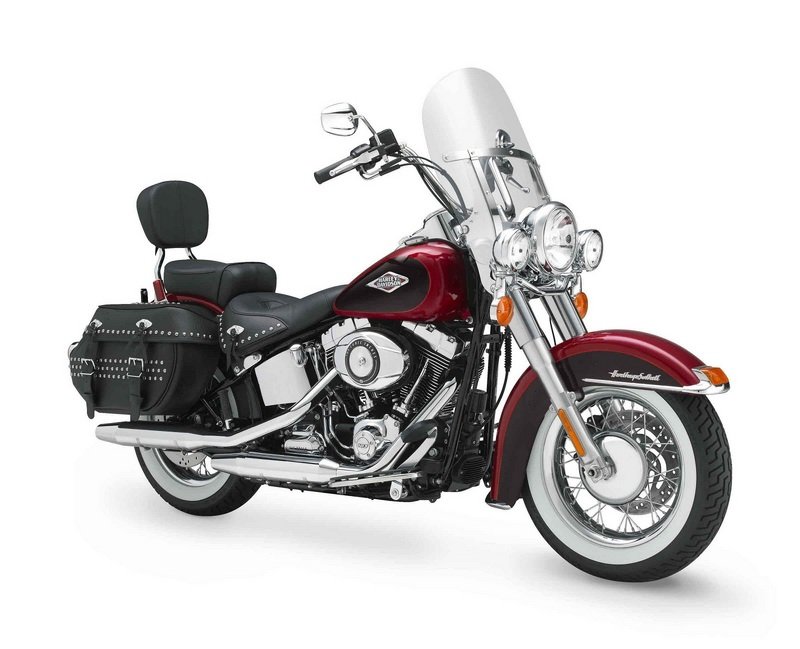

2012 Harley-Davidson FLSTC Heritage Softail Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Harley-Davidson FLSTC Heritage Softail Classic.

Basic Specs

Year2012
MakeHarley-Davidson
ModelHarley-Davidson FLSTC Heritage Softail Classic
CostUS$ 17349. Euro 21145. UK £ 16399. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled, Twin Cam 103B™
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
LubricationPressurized, dry-sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate, wet
DrivelinePrimary Drive Chain, 34/46 ratio. Final Drive Belt, 32/66 ratio.

Performance

Horespower
Torque131.40 Nm (13.4 kgf-m or 96.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeMild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Rake31.0°
Trail130 mm (5.1 inches)
Front Suspension41.3 mm telescopic, “beer can” covers
Front Travel109 mm (4.3 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel91 mm (3.6 inches)
SeatTwo-piece, two-up Softail® seat with removable pillion
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,400 mm (94.5 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,638 mm (64.5 inches)
Dry Weight331.1 kg (730.0 pounds)
Wet Weight345.2 kg (761.0 pounds)

Wheels & Brakes

Front Tire/TyreMT90-B16
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. 4-piston caliper. Optional ABS.
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston caliper. Optional ABS.
Rear Brake Diameter292 mm (11.5 inches)
WheelsSteel Laced

Comments

It appears you're interested in specifications for the Harley-Davidson FLSTC Heritage Softail Classic. This Custom / cruiser model is powered by a Air-cooled, Twin Cam 103B™ V2, four-stroke engine with 1687.97 ccm (103.00 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 131.40 Nm (13.4 kgf-m or 96.9 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLSTC Heritage Softail Classic is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MT90-B16 and the rear is 150/80-B16 . The entire package is supported by the frame, Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston caliper. Optional ABS. front brakes and Single disc. 2-piston caliper. Optional ABS. rear brakes. The Harley-Davidson FLSTC Heritage Softail Classic was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Quick-release Lexan windshield. Nostalgic leather saddlebags withhidden quick-detach buckles
