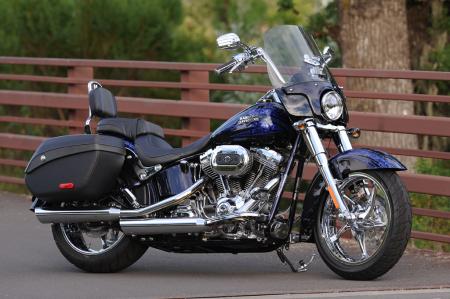

2012 Harley-Davidson FLSTSE3 CVO Softail Convertible Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Harley-Davidson FLSTSE3 CVO Softail Convertible.

Basic Specs

Year2012
MakeHarley-Davidson
ModelHarley-Davidson FLSTSE3 CVO Softail Convertible
CostUS$ 26699. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1802.69 ccm (110.00 cubic inches)
TypeAir-cooled, Twin Cam 110B™
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.3 mm (4.0 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, shorty-dual exhaust with chrome mufflers and muffler shields
LubricationPressurized, dry-sump with oil cooler
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio

Performance

Horespower
Torque142.38 Nm (14.5 kgf-m or 105.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.23 litres/100 km (19.1 km/l or 44.98 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions121.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake32.0°
Trail147 mm (5.8 inches)
Front Suspension41.3 mm telescopic, chrome upper fork-slider covers
Front Travel117 mm (4.6 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel51 mm (2.0 inches)
SeatCustom leather seat, removable passenger pillion, and detachable stylized passenger upright and backrest pad with distressed brown leather (satin pewter only) or reptile inserts
Seat Height620 mm (24.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,410 mm (94.9 inches)
Total Width
Ground Clearance109 mm (4.3 inches)
Wheelbase1,631 mm (64.2 inches)
Dry Weight345.2 kg (761.0 pounds)
Wet Weight357.4 kg (788.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-R18
Rear Tire/Tyre200/50-R18
Front BrakesSingle disc. 4-piston calipers. ABS.
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 4-piston caliper. ABS.
Rear Brake Diameter292 mm (11.5 inches)
WheelsMirror Chrome Stinger Custom Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLSTSE3 CVO Softail Convertible. This Custom / cruiser model is powered by a Air-cooled, Twin Cam 110B™ V2, four-stroke engine with 1802.69 ccm (110.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 142.38 Nm (14.5 kgf-m or 105.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLSTSE3 CVO Softail Convertible is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/70-R18 and the rear is 200/50-R18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston calipers. ABS. front brakes and Single disc. 4-piston caliper. ABS. rear brakes. The Harley-Davidson FLSTSE3 CVO Softail Convertible was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

CVO is ab abbreviation of HD´s Custom Vehicle Operations.
