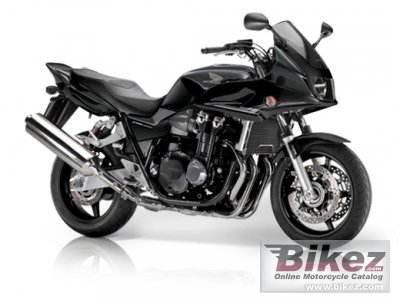

2012 Honda CB1300S ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Honda CB1300S ABS.

Basic Specs

Year2012
MakeHonda
ModelHonda CB1300S ABS
Cost

Engine

Displacement1284.00 ccm (78.35 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke78.0 x 67.2 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
IgnitionComputer-controlled digital transistorised with electronic advance
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet multi-plate
Driveline5-speed constant mesh

Performance

Horespower99.24 HP (72.4 kW)
Torque114.00 Nm (11.6 kgf-m or 84.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption3.92 litres/100 km (25.5 km/l or 60.01 mpg)
Fuel Capacity21.00 litres (5.55 gallons)
Emissions90.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake25.0°
Trail99 mm (3.9 inches)
Front Suspension43mm cartridge-type telescopic fork with adjustable compression and rebound damping
Front Travel109 mm (4.3 inches)
Rear SuspensionDual conventional dampers with 5-step adjustable spring pre-load and rebound damping
Rear Travel116 mm (4.6 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,110 mm (43.7 inches)
Total Length2,200 mm (86.6 inches)
Total Width795 mm (31.3 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1,510 mm (59.4 inches)
Dry Weight236.0 kg (520.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. 4-piston callipers. Anti-locking brakes (ABS)
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Anti-locking brakes (ABS)
Rear Brake Diameter256 mm (10.1 inches)
WheelsU-section 5-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda CB1300S ABS. This Naked bike model is powered by a In-line four, four-stroke engine with 1284.00 ccm (78.35 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection allowing this machine to produce its 99.24 HP (72.4 kW) horsepower and 114.00 Nm (11.6 kgf-m or 84.1 ft.lbs) torque. According to our records engine heat of the Honda CB1300S ABS is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston callipers. Anti-locking brakes (ABS) front brakes and Single disc. Anti-locking brakes (ABS) rear brakes. The Honda CB1300S ABS was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
