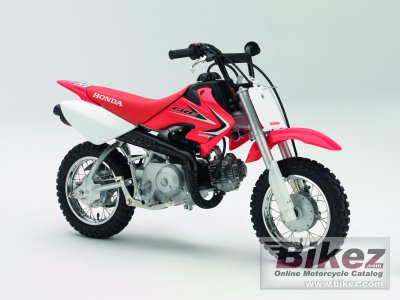

These are the known mechanical and performance specifications for your 2012 Honda CRF50F.
Basic Specs
Engine
Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke39.0 x 41.4 mm (1.5 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. 13mm piston-valve carburator
IgnitionCD
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox3-speed
Final DriveChain
ClutchAutomatic
Driveline#420 chain; 14T/37T
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity3.00 litres (0.79 gallons)
Emissions
Chassis
Frame Type
Rake25.0°
Trail
Front Suspension21.7mm inverted telescopic fork
Front Travel90 mm (3.5 inches)
Rear SuspensionMonoshock with cantilever-type swingarm
Rear Travel70 mm (2.8 inches)
Seat
Seat Height549 mm (21.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance147 mm (5.8 inches)
Wheelbase914 mm (36.0 inches)
Dry Weight47.0 kg (103.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.50-10
Rear Tire/Tyre2.50-10
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsWire spoke
