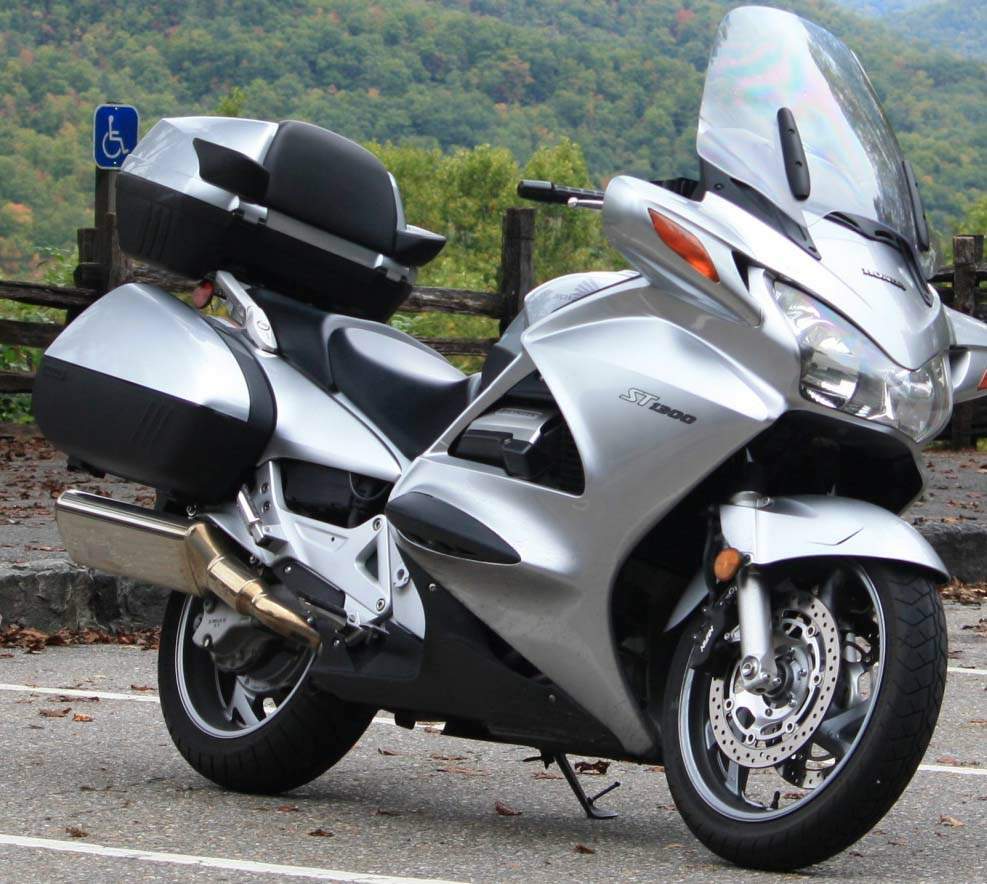

2012 Honda ST1300 Pan-European Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Honda ST1300 Pan-European.

Basic Specs

Year2012
MakeHonda
ModelHonda ST1300 Pan-European
Cost

Engine

Displacement1261.00 ccm (76.95 cubic inches)
Type90º V-4
DetailsV4, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke78.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector
IgnitionComputer-controlled digital with three-dimensional mapping and electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
DrivelineEnclosed shaft with integrated dampers

Performance

Horespower117.00 HP (85.4 kW)
Torque117.00 Nm (11.9 kgf-m or 86.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity29.14 litres (7.70 gallons)
Emissions

Chassis

Frame Type
Rake26.0°
Trail98 mm (3.9 inches)
Front Suspension45mm HMAS cartridge fork
Front Travel117 mm (4.6 inches)
Rear SuspensionHMAS gas-charged single shock with five-position spring-preload adjustability
Rear Travel120 mm (4.7 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,332 mm (52.4 inches)
Total Length2,282 mm (89.8 inches)
Total Width935 mm (36.8 inches)
Ground Clearance145 mm (5.7 inches)
Wheelbase1,500 mm (59.1 inches)
Dry Weight283.0 kg (623.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR18
Rear Tire/Tyre170/60-ZR17
Front BrakesDouble disc. Combined three-piston callipers, (ABS) and sintered metal pads
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Combined three-piston calliper, (ABS) and sintered metal pads
Rear Brake Diameter316 mm (12.4 inches)
WheelsHollow-section triple-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda ST1300 Pan-European. This Sport touring model is powered by a 90º V-4 V4, four-stroke engine with 1261.00 ccm (76.95 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Injection. PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector allowing this machine to produce its 117.00 HP (85.4 kW) horsepower and 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) torque. According to our records engine heat of the Honda ST1300 Pan-European is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR18 and the rear is 170/60-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Combined three-piston callipers, (ABS) and sintered metal pads front brakes and Single disc. Combined three-piston calliper, (ABS) and sintered metal pads rear brakes. The Honda ST1300 Pan-European was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: ST1300
