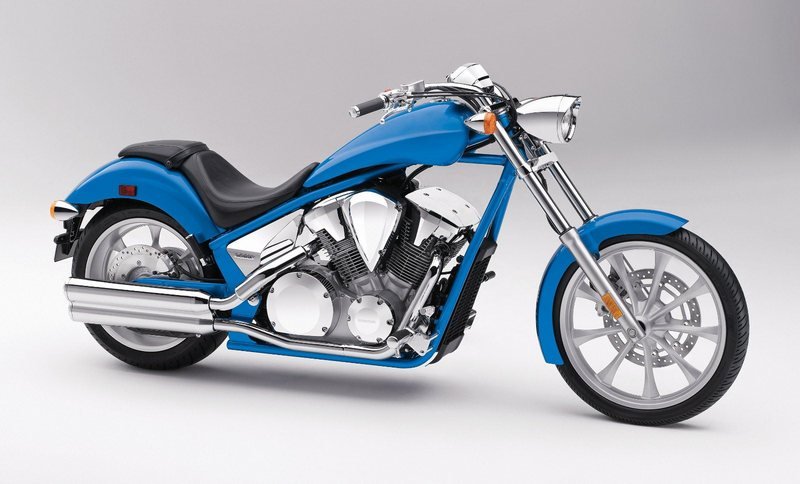

These are the known mechanical and performance specifications for your 2012 Honda VT1300CX.
Basic Specs
Engine
Displacement1312.00 ccm (80.06 cubic inches)
Type52° V-twin
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke89.5 x 104.3 mm (3.5 x 4.1 inches)
Valves/Cylinder
FuelingInjection. PGM-FI with automatic enricher circuit
IgnitionDigital with 3-dimensional mapping, 2 sparks per cylinder
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
DrivelineShaft
Performance
Horespower56.99 HP (41.6 kW)
Torque107.00 Nm (10.9 kgf-m or 78.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.93 litres/100 km (20.3 km/l or 47.71 mpg)
Fuel Capacity20.30 litres (5.36 gallons)
Emissions114.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake
Trail
Front Suspension45mm telescopic fork with 130mm stroke and 102.4mm axle travel
Front Travel
Rear SuspensionMonoshock with adjustable rebound damping and 35-position spring preload adjustability, 95mm axle travel
Rear Travel
Seat
Seat Height678 mm (26.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,150 mm (45.3 inches)
Total Length2,575 mm (101.4 inches)
Total Width900 mm (35.4 inches)
Ground Clearance126 mm (5.0 inches)
Wheelbase1,805 mm (71.1 inches)
Dry Weight303.0 kg (668.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-R21
Rear Tire/Tyre200/50-R18
Front BrakesDouble disc. Twin-piston caliper
Front Brake Diameter336 mm (13.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter296 mm (11.7 inches)
WheelsCast aluminium
