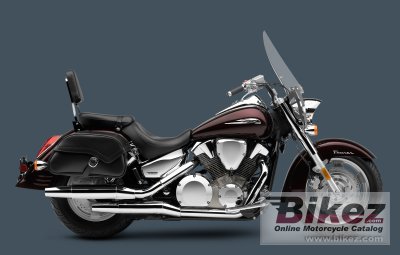

2012 Honda VTX1300T Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Honda VTX1300T.

Basic Specs

Year2012
MakeHonda
ModelHonda VTX1300T
CostUS$ 10499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1312.00 ccm (80.06 cubic inches)
Type52 degree V-twin
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke89.5 x 104.3 mm (3.5 x 4.1 inches)
Valves/Cylinder3
FuelingCarburettor. Single 38mm constant-velocity carburetor
IgnitionDigital with three-dimensional mapping, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.17 litres (4.80 gallons)
Emissions

Chassis

Frame Type
Rake32.0°
Trail144 mm (5.7 inches)
Front Suspension41mm fork
Front Travel130 mm (5.1 inches)
Rear SuspensionRear: Dual shocks with five-position spring-preload adjustability
Rear Travel94 mm (3.7 inches)
Seat
Seat Height696 mm (27.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,669 mm (65.7 inches)
Dry Weight
Wet Weight339.3 kg (748.0 pounds)

Wheels & Brakes

Front Tire/Tyre140/80-17
Rear Tire/Tyre170/80-15
Front BrakesDouble disc. Twin-piston caliper
Front Brake Diameter336 mm (13.2 inches)
Rear BrakesSingle disc. Twin-piston caliper
Rear Brake Diameter296 mm (11.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda VTX1300T. This Custom / cruiser model is powered by a 52 degree V-twin V2, four-stroke engine with 1312.00 ccm (80.06 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor. Single 38mm constant-velocity carburetor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda VTX1300T is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 140/80-17 and the rear is 170/80-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Twin-piston caliper front brakes and Single disc. Twin-piston caliper rear brakes. The Honda VTX1300T was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windscreen. Full Touring Features. Model ID: VTX1300T.
