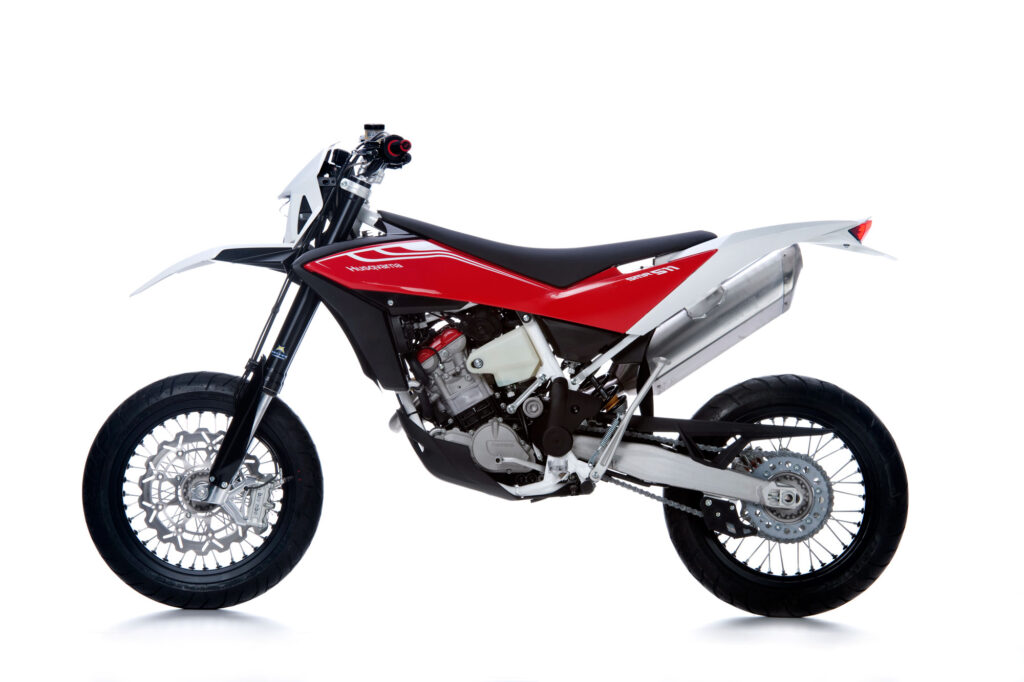

These are the known mechanical and performance specifications for your 2012 Husqvarna SMR511.
Basic Specs
Engine
Displacement477.50 ccm (29.14 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke101.0 x 59.6 mm (4.0 x 2.3 inches)
Valves/Cylinder4
FuelingInjection. Keihin Digital Fuel Injection
IgnitionC.D.I. electronic, with adjustable advance
Exhaust
LubricationDry sump with two oil pump rotor and cartridge filter
CoolingLiquid
Drivetrain
Gearbox
Final DriveChain
ClutchWet, multi-plate type, hydraulic control
Driveline6 speed constant mesh
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.50 litres (2.25 gallons)
Emissions
Chassis
Frame TypeType
Rake
Trail
Front SuspensionMarzocchi USD telescopic hydraulic fork with advanced axle, compression and rebound stroke adjustment
Front Travel250 mm (9.8 inches)
Rear SuspensionSachs Progressive link with single hydraulic shock absorber
Rear Travel290 mm (11.4 inches)
Seat
Seat Height915 mm (36.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,210 mm (47.6 inches)
Total Length2,170 mm (85.4 inches)
Total Width820 mm (32.3 inches)
Ground Clearance280 mm (11.0 inches)
Wheelbase1,460 mm (57.5 inches)
Dry Weight118.0 kg (260.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre150/60-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
