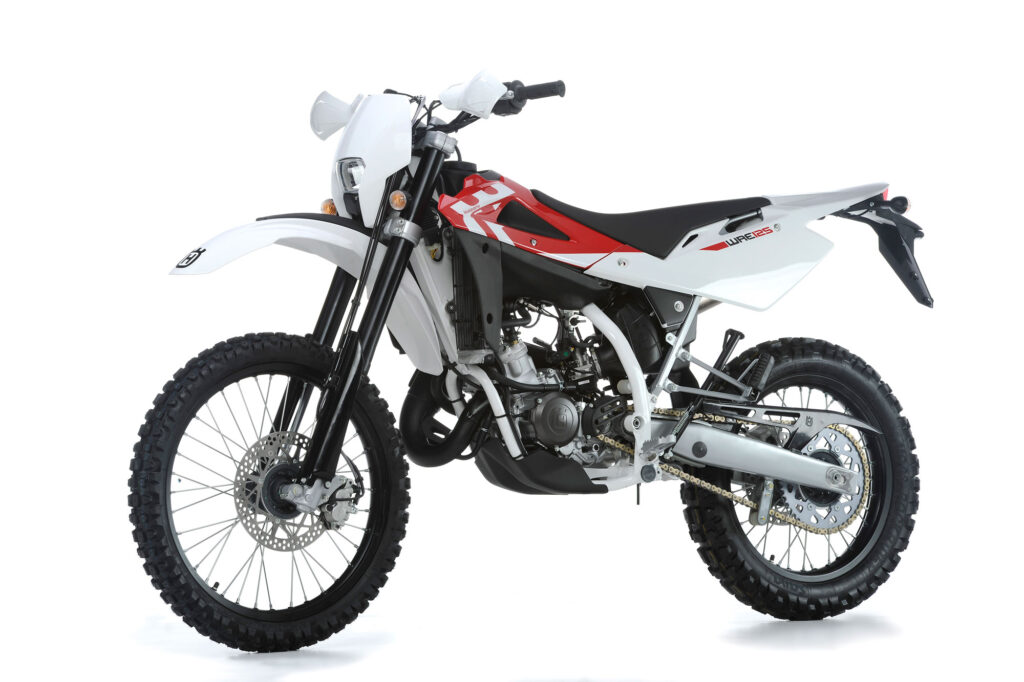

2012 Husqvarna WRE125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Husqvarna WRE125.

Basic Specs

Year2012
MakeHusqvarna
ModelHusqvarna WRE125
Cost

Engine

Displacement124.82 ccm (7.62 cubic inches)
TypeReed valve in the crankcase and ´H.T.S.´ valve with mechanic control on the exhaust port
DetailsSingle cylinder, two-stroke
Max RPM
Compression8.8:1
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto VHST 28-CS
IgnitionC.D.I. electronic, digital type, with adjustable advance
Exhaust
LubricationBy electrical pump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMulti plate, cable operation
Driveline6 speed constant mesh

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions

Chassis

Frame Type
Rake
Trail102 mm (4.0 inches)
Front SuspensionMarzocchi Upside-Down telescopic hydraulic fork with advanced axle
Front Travel260 mm (10.2 inches)
Rear SuspensionSachs Multi Adjustable Shock with Soft Damp Linkage
Rear Travel270 mm (10.6 inches)
Seat
Seat Height944 mm (37.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,245 mm (49.0 inches)
Total Length2,208 mm (86.9 inches)
Total Width825 mm (32.5 inches)
Ground Clearance330 mm (13.0 inches)
Wheelbase1,462 mm (57.6 inches)
Dry Weight
Wet Weight108.0 kg (238.1 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre120/80-18
Front BrakesSingle disc. Fixed disc with hydraulic control and floating caliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Fixed disc with hydraulic control and floating caliper
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna WRE125. This Enduro / offroad model is powered by a Reed valve in the crankcase and ´H.T.S.´ valve with mechanic control on the exhaust port Single cylinder, two-stroke engine with 124.82 ccm (7.62 cubic inches) of actual displacement before 8.8:1 compression. Fueling is metered via Carburettor. Dell´Orto VHST 28-CS allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna WRE125 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 120/80-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Fixed disc with hydraulic control and floating caliper front brakes and Single disc. Fixed disc with hydraulic control and floating caliper rear brakes. The Husqvarna WRE125 was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
