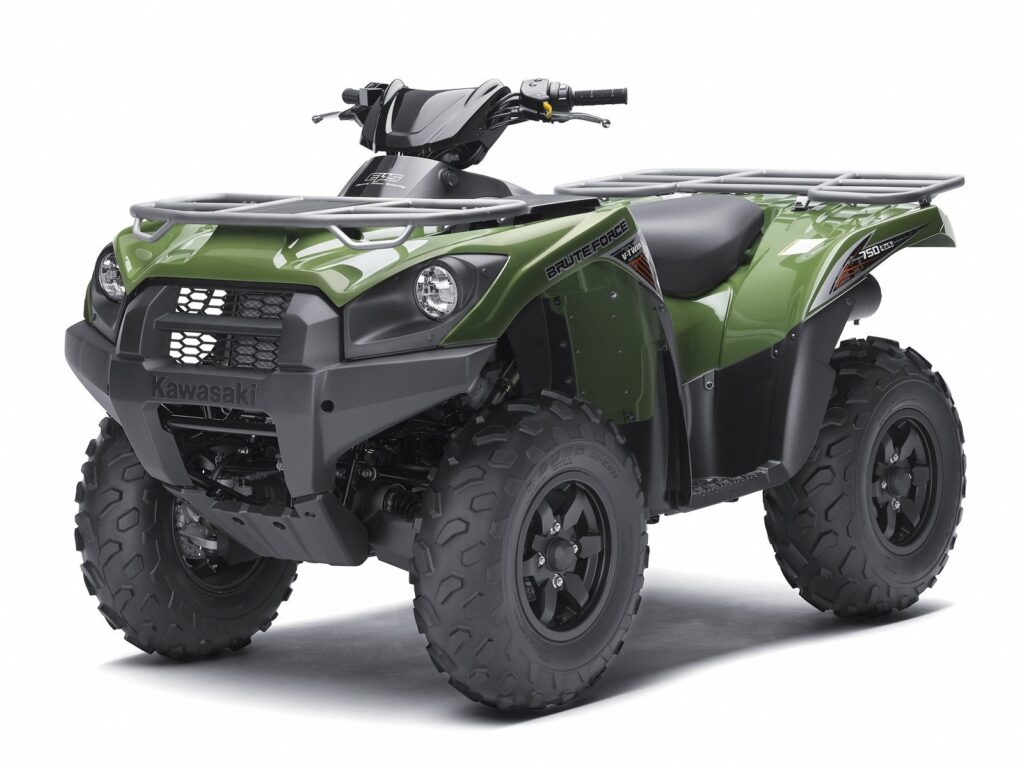

2012 Kawasaki KVF750 4x4 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Kawasaki KVF750 4x4.

Basic Specs

Year2012
MakeKawasaki
ModelKawasaki KVF750 4x4
TypeATV
Cost

Engine

Displacement749.00 ccm (45.70 cubic inches)
Type90 degree V-twin
DetailsV2, four-stroke
Max RPM
Compression9.3:1
Bore/Stroke85.0 x 66.0 mm (3.3 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. DFI ; (2) 36mm Mikuni throttle bodies
IgnitionTCBI with digital advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final DriveShaft drive (cardan)
Clutch
DrivelineSelectable four-wheel drive with Variable Front Differential Control, shaft

Performance

Horespower49.75 HP (36.3 kW)
Torque59.40 Nm (6.1 kgf-m or 43.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame TypeDouble-cradle, high-tensile tubular steel
Rake
Trail
Front SuspensionDouble wishbone with twin shock absorbers
Front Travel171 mm (6.7 inches)
Rear SuspensionDouble wishbone with double shock absorbers
Rear Travel200 mm (7.9 inches)
Seat
Seat Height
Alt. Seat Height
Total Height1,233 mm (48.5 inches)
Total Length2,195 mm (86.4 inches)
Total Width1,166 mm (45.9 inches)
Ground Clearance247 mm (9.7 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight275.0 kg (606.3 pounds)
Wet Weight297.0 kg (654.8 pounds)

Wheels & Brakes

Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesSealed multidisc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KVF750 4x4. This ATV model is powered by a 90 degree V-twin V2, four-stroke engine with 749.00 ccm (45.70 cubic inches) of actual displacement before 9.3:1 compression. Fueling is metered via Injection. DFI ; (2) 36mm Mikuni throttle bodies allowing this machine to produce its 49.75 HP (36.3 kW) horsepower and 59.40 Nm (6.1 kgf-m or 43.8 ft.lbs) torque. According to our records engine heat of the Kawasaki KVF750 4x4 is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 25/8-12 and the rear is 25/10-12 . The entire package is supported by the frame, Double-cradle, high-tensile tubular steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Sealed multidisc rear brakes. The Kawasaki KVF750 4x4 was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
