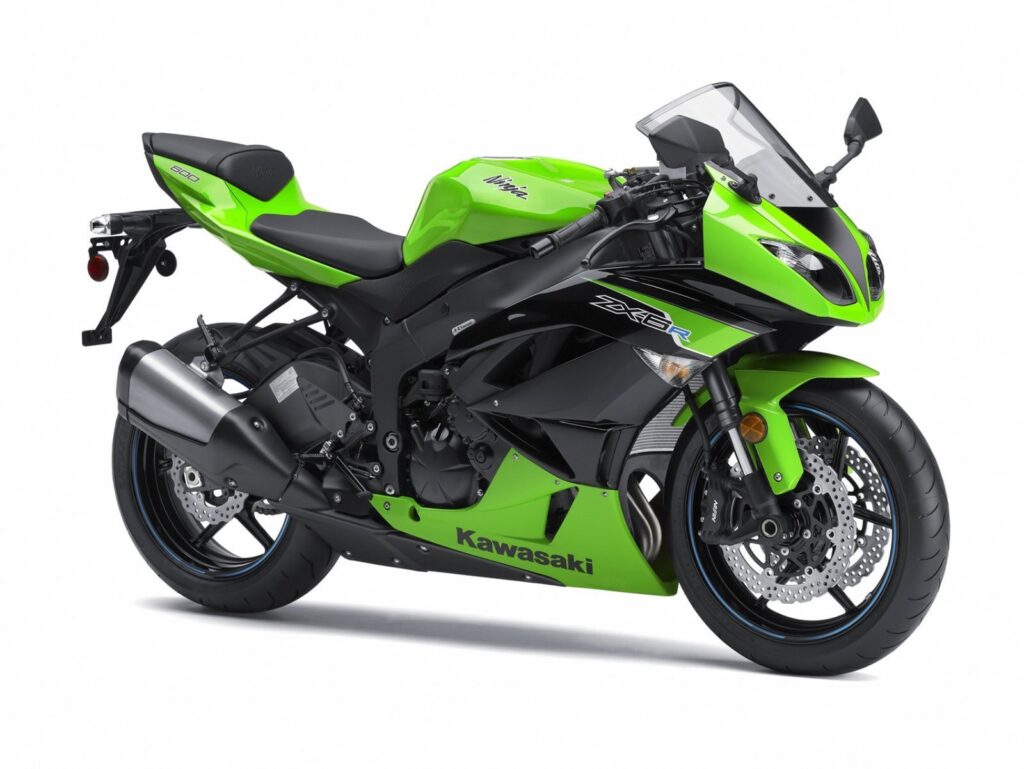

2012 Kawasaki Ninja ZX-6R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Kawasaki Ninja ZX-6R.

Basic Specs

Year2012
MakeKawasaki
ModelKawasaki Ninja ZX-6R
TypeSport
CostUS$ 10299. Prices depend on country, taxes, accessories, etc.

Engine

Displacement599.00 ccm (36.55 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression13.3:1
Bore/Stroke67.0 x 42.5 mm (2.6 x 1.7 inches)
Valves/Cylinder4
FuelingInjection. DFI with four 38mm Keihin throttle bodies, oval sub-throttles, two injectors per throttle body
IgnitionTCBI with digital advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
DrivelineX-Ring Chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.03 litres (4.50 gallons)
Emissions

Chassis

Frame TypeAluminum perimeter
Rake24.0°
Trail104 mm (4.1 inches)
Front Suspension41 mm inverted Showa Big Piston fork with top-out springs, stepless compression and rebound damping, fully adjustable spring preload / 4.7 in.
Front Travel
Rear SuspensionBottom-link Uni-Trak with gas-charged shock, top-out spring and pillow ball upper mount, dual-range (high-/low-speed) stepless compression damping, 25-way adjustable rebound damping, fully adjustable spring preload / 5.3 in.
Rear Travel
Seat
Seat Height815 mm (32.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length2,090 mm (82.3 inches)
Total Width711 mm (28.0 inches)
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight
Wet Weight191.1 kg (421.2 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Ninja ZX-6R. This Sport model is powered by a In-line four, four-stroke engine with 599.00 ccm (36.55 cubic inches) of actual displacement before 13.3:1 compression. Fueling is metered via Injection. DFI with four 38mm Keihin throttle bodies, oval sub-throttles, two injectors per throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki Ninja ZX-6R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminum perimeter. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Kawasaki Ninja ZX-6R was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
