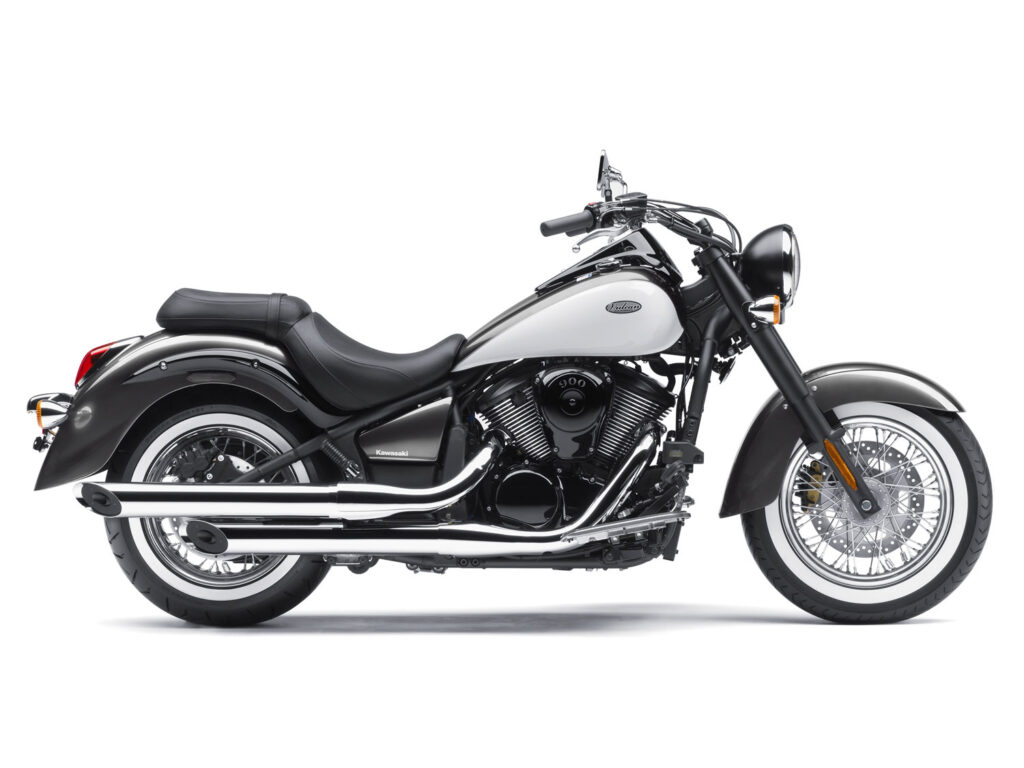

2012 Kawasaki VN900 Classic Special Edition Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Kawasaki VN900 Classic Special Edition.

Basic Specs

Year2012
MakeKawasaki
ModelKawasaki VN900 Classic Special Edition
Cost

Engine

Displacement903.00 ccm (55.10 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke88.0 x 74.2 mm (3.5 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. 34 mm x 2 with dual throttles
IgnitionDigital
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower49.62 HP (36.2 kW)
Torque78.00 Nm (8.0 kgf-m or 57.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions

Chassis

Frame TypeDouble-cradle, steel
Rake32.0°
Trail160 mm (6.3 inches)
Front Suspension41 mm telescopic fork with 7-way preload
Front Travel150 mm (5.9 inches)
Rear SuspensionUni-Trak
Rear Travel100 mm (3.9 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,650 mm (65.0 inches)
Dry Weight
Wet Weight282.0 kg (621.7 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-16
Rear Tire/Tyre180/70-15
Front BrakesSingle disc. Twin-piston
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Twin-piston
Rear Brake Diameter270 mm (10.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki VN900 Classic Special Edition. This Custom / cruiser model is powered by a V2, four-stroke engine with 903.00 ccm (55.10 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. 34 mm x 2 with dual throttles allowing this machine to produce its 49.62 HP (36.2 kW) horsepower and 78.00 Nm (8.0 kgf-m or 57.5 ft.lbs) torque. According to our records engine heat of the Kawasaki VN900 Classic Special Edition is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/90-16 and the rear is 180/70-15 . The entire package is supported by the frame, Double-cradle, steel . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Twin-piston front brakes and Single disc. Twin-piston rear brakes. The Kawasaki VN900 Classic Special Edition was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
