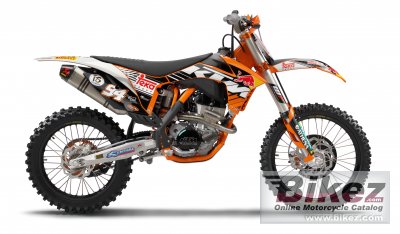

These are the known mechanical and performance specifications for your 2012 KTM 250 SX-F Roczen Edition.
Basic Specs

Engine
Displacement248.60 ccm (15.17 cubic inches)
Type250 SX-F motor with performance kit
DetailsSingle cylinder, four-stroke
Max RPM
Compression13.2:1
Bore/Stroke76.0 x 54.8 mm (3.0 x 2.2 inches)
Valves/Cylinder
Fueling
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
ExhaustAkrapovic Factory titanium exhaust manifold and silence
LubricationForced oil lubrication with 2 Eaton pumps
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch / hydraulically operated
Driveline13:48
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions
Chassis
Frame TypeCentral tube frame made of chrome molybdenum steel tubing
Rake26.5°
Trail
Front SuspensionWP Suspension Up Side Down 4860 MXMA CC
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Suspension 5018 BAVP DCC
Rear Travel330 mm (13.0 inches)
SeatSXS seat
Seat Height992 mm (39.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance375 mm (14.8 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight103.4 kg (228.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre100/90-19
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsBlack EXCEL-Wheels
