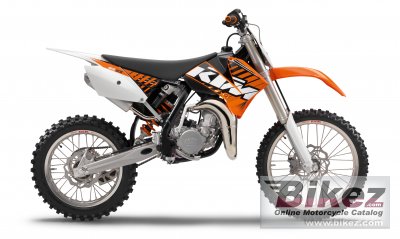

These are the known mechanical and performance specifications for your 2012 KTM 85 SX 19-16.
Basic Specs

Engine
Displacement84.90 ccm (5.18 cubic inches)
TypeRotation speed dependent exhaust flap
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke47.0 x 49.0 mm (1.9 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 28
IgnitionMoric digital 2M1
ExhaustAluminium
LubricationMixture lubrication 1:40
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch, hydraulically operated
Driveline14:49
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.00 litres (1.32 gallons)
Emissions
Chassis
Frame TypeDouble grinded central double-cradle-type frame. Subframe: Aluminium.
Rake24.0°
Trail
Front SuspensionWP Upside-Down 43 mm
Front Travel270 mm (10.6 inches)
Rear SuspensionWP-PDS mono shock
Rear Travel300 mm (11.8 inches)
Seat
Seat Height900 mm (35.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance377 mm (14.8 inches)
Wheelbase1,290 mm (50.8 inches)
Dry Weight69.0 kg (152.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter210 mm (8.3 inches)
Wheels1.60 x 19 inches; 1.85 x 16 inches Alu
