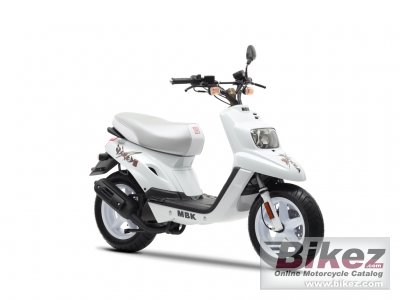

2012 MBK Booster 13-inch Naked Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 MBK Booster 13-inch Naked.

Basic Specs

Year2012
MakeMBK
ModelMBK Booster 13-inch Naked
Cost

Engine

Displacement49.20 ccm (3.00 cubic inches)
TypeReed valve intake system
DetailsSingle cylinder, two-stroke
Max RPM
Compression7.2:1
Bore/Stroke40.0 x 70.0 mm (1.6 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionCDI
Exhaust
LubricationSeparate lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchAutomatic centrifugal
Driveline

Performance

Horespower3.22 HP (2.4 kW)
Torque3.60 Nm (0.4 kgf-m or 2.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.30 litres (1.40 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel70 mm (2.8 inches)
Rear SuspensionUnit swing
Rear Travel70 mm (2.8 inches)
Seat
Seat Height768 mm (30.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,685 mm (66.3 inches)
Total Width675 mm (26.6 inches)
Ground Clearance124 mm (4.9 inches)
Wheelbase1,172 mm (46.1 inches)
Dry Weight75.0 kg (165.3 pounds)
Wet Weight82.0 kg (180.8 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-13
Rear Tire/Tyre130/70-13
Front BrakesSingle disc
Front Brake Diameter180 mm (7.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
WheelsAlloy rims

Comments

It appears you're interested in specifications for the MBK Booster 13-inch Naked. This Scooter model is powered by a Reed valve intake system Single cylinder, two-stroke engine with 49.20 ccm (3.00 cubic inches) of actual displacement before 7.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 3.22 HP (2.4 kW) horsepower and 3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) torque. According to our records engine heat of the MBK Booster 13-inch Naked is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-13 and the rear is 130/70-13 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The MBK Booster 13-inch Naked was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
