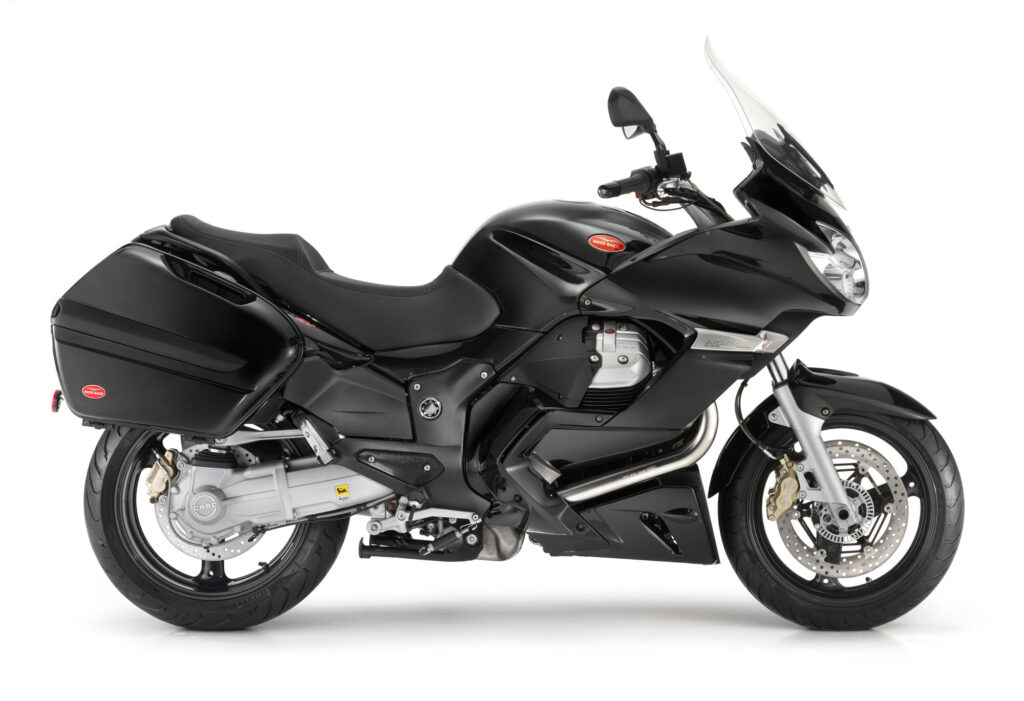

These are the known mechanical and performance specifications for your 2012 Moto Guzzi Norge GT 8V.
Basic Specs


Year2012
MakeMoto Guzzi
ModelMoto Guzzi Norge GT 8V
TypeTouring
CostUS$ 15990. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1151.00 ccm (70.23 cubic inches)
Type90° V-Twin,
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder4
FuelingInjection. Magneti Marelli IAW5A, and #945;-n type; 2 Ø 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition
Ignition
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDry plate
DrivelineCARC compact reactive cardan shaft drive system; double cardan joint and floating bevel gear set, drive ratio 12/44 = 1 : 3.666
Performance
Horespower102.00 HP (74.5 kW)
Torque104.00 Nm (10.6 kgf-m or 76.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions
Chassis
Frame TypeTubular cradle, high tensile steel
Rake
Trail
Front SuspensionTelescopic hydraulic fork with 45 mm, preload adjustable
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
Rear Travel140 mm (5.5 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,195 mm (86.4 inches)
Total Width870 mm (34.3 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight257.0 kg (566.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Stainless steel floating discs and callipers with 4 horizontally opposed pistons - ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Stainless steel fixed disc, floating calliper with 2 parallel pistons - ABS
Rear Brake Diameter282 mm (11.1 inches)
WheelsThree spokes, light alloy wheels, gravity casting
