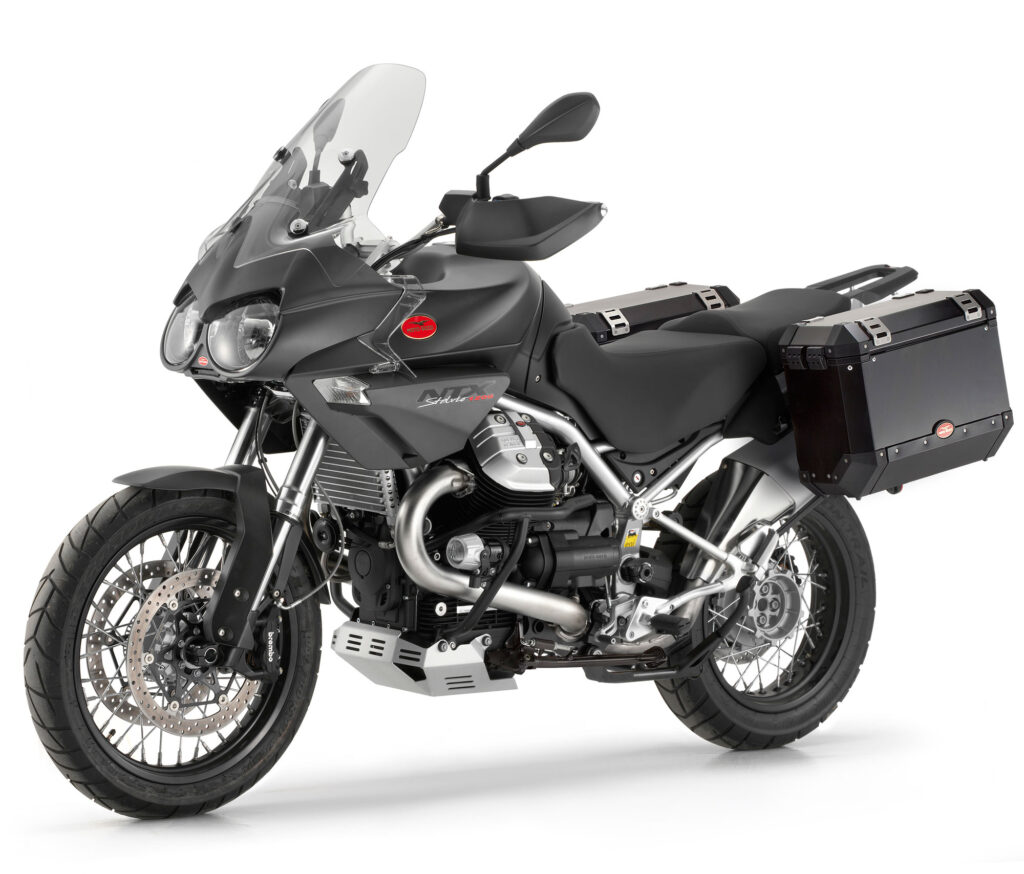

These are the known mechanical and performance specifications for your 2012 Moto Guzzi Stelvio 1200 ABS.
Basic Specs
Year2012
MakeMoto Guzzi
ModelMoto Guzzi Stelvio 1200 ABS
TypeEnduro / offroad
CostUS$ 15990. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1151.00 ccm (70.23 cubic inches)
Type90° V-twin.
DetailsV2, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder
FuelingInjection
IgnitionMultipoint sequential electronic ignition, Magneti Marelli
ExhaustStainless steel two-into-one
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle-disc with integrated anti-vibration buffer
DrivelinePrimary transmission with helical teeth, ratio 26/35 = 1: 1.346. Final drive: Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666.
Performance
Horespower110.00 HP (80.3 kW)
Torque108.00 Nm (11.0 kgf-m or 79.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions
Chassis
Frame TypeTubular in high-strength steel with integrated engine
Rake27.0°
Trail125 mm (4.9 inches)
Front SuspensionUpside down Ø 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
Front Travel170 mm (6.7 inches)
Rear SuspensionProgressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
Rear Travel155 mm (6.1 inches)
Seat
Seat Height840 mm (33.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,475 mm (58.1 inches)
Total Length2,250 mm (88.6 inches)
Total Width1,025 mm (40.4 inches)
Ground Clearance210 mm (8.3 inches)
Wheelbase1,535 mm (60.4 inches)
Dry Weight
Wet Weight251.0 kg (553.4 pounds)
Wheels & Brakes
Front Tire/Tyre110/90-R19
Rear Tire/Tyre180/55-R17
Front BrakesDouble disc. ABS. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Rear Brake Diameter282 mm (11.1 inches)
WheelsSpoked aluminium alloy
