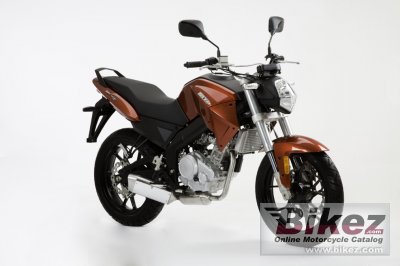

2012 Motorhispania MH7 125 Naked Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Motorhispania MH7 125 Naked.

Basic Specs

Year2012
MakeMotorhispania
ModelMotorhispania MH7 125 Naked
Cost

Engine

Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke58.6 x 52.0 mm (2.3 x 2.0 inches)
Valves/Cylinder4
FuelingCarburettor. CVEK C2T7
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final DriveChain
ClutchLight alloy multiple disk, wet
Driveline

Performance

Horespower15.00 HP (10.9 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.50 litres (3.30 gallons)
Emissions

Chassis

Frame TypeDelta box double steel tube
Rake
Trail
Front SuspensionPaioli Upside down fork, 41 mm
Front Travel
Rear SuspensionOllé monoshock
Rear Travel130 mm (5.1 inches)
Seat
Seat Height795 mm (31.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,980 mm (78.0 inches)
Total Width750 mm (29.5 inches)
Ground Clearance
Wheelbase1,310 mm (51.6 inches)
Dry Weight119.0 kg (262.4 pounds)
Wet Weight134.0 kg (295.4 pounds)

Wheels & Brakes

Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc. Tecme Wave Air, AJP Monoblock 4 piston caliper.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Tecme Wave Air
Rear Brake Diameter220 mm (8.7 inches)
WheelsBlack rims

Comments

It appears you're interested in specifications for the Motorhispania MH7 125 Naked. This Naked bike model is powered by a Single cylinder, four-stroke engine with 125.00 ccm (7.63 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. CVEK C2T7 allowing this machine to produce its 15.00 HP (10.9 kW) horsepower and torque. According to our records engine heat of the Motorhispania MH7 125 Naked is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/80-17 and the rear is 130/70-17 . The entire package is supported by the frame, Delta box double steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Tecme Wave Air, AJP Monoblock 4 piston caliper. front brakes and Single disc. Tecme Wave Air rear brakes. The Motorhispania MH7 125 Naked was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Also available in an air cooled version. Motorhispania, also called MH Motorcycles, is a Spanish brand.
