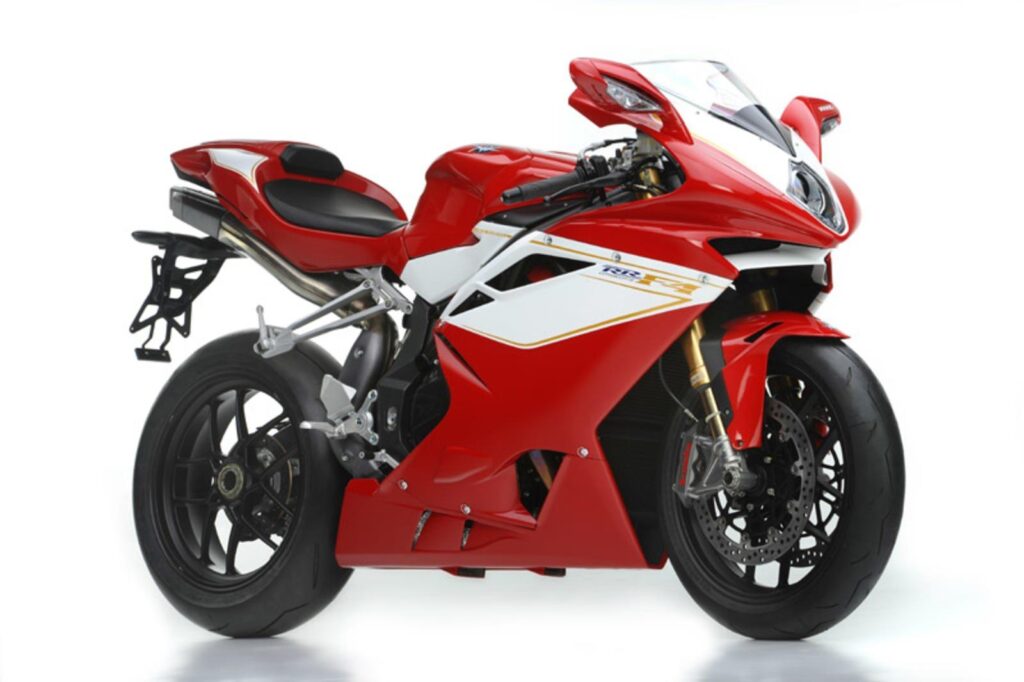

2012 MV Agusta F4 RR Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 MV Agusta F4 RR.

Basic Specs

Year2012
MakeMV Agusta
ModelMV Agusta F4 RR
TypeSport
Cost Euro 23200. Prices depend on country, taxes, accessories, etc.

Engine

Displacement998.00 ccm (60.90 cubic inches)
TypeTitanium intake and exhaust valves
DetailsIn-line four, four-stroke
Max RPM
Compression13.4:1
Bore/Stroke79.0 x 50.9 mm (3.1 x 2.0 inches)
Valves/Cylinder4
FuelingInjection. Weber Marelli 5SM ignition - injection integrated system; induction discharge electronic ignition, “Multipoint” sequential timed electronic injection
Ignition
Exhaust4-2-1-4 exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multiplate. Mechanical anti-surging device.
Driveline6-speed constant mesh

Performance

Horespower201.00 HP (146.7 kW)
Torque114.00 Nm (11.6 kgf-m or 84.1 ft.lbs)
Top Speed300.0 km/h (186.4 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeCrMo Steel Tubular Trellis
Rake
Trail104 mm (4.1 inches)
Front SuspensionOhlins USD forks, adsjustable
Front Travel120 mm (4.7 inches)
Rear SuspensionOhlins TTX adjustable monoshock
Rear Travel120 mm (4.7 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,100 mm (82.7 inches)
Total Width750 mm (29.5 inches)
Ground Clearance115 mm (4.5 inches)
Wheelbase1,430 mm (56.3 inches)
Dry Weight184.0 kg (405.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter210 mm (8.3 inches)
WheelsForged aluminium alloy

Comments

It appears you're interested in specifications for the MV Agusta F4 RR. This Sport model is powered by a Titanium intake and exhaust valves In-line four, four-stroke engine with 998.00 ccm (60.90 cubic inches) of actual displacement before 13.4:1 compression. Fueling is metered via Injection. Weber Marelli 5SM ignition - injection integrated system; induction discharge electronic ignition, “Multipoint” sequential timed electronic injection allowing this machine to produce its 201.00 HP (146.7 kW) horsepower and 114.00 Nm (11.6 kgf-m or 84.1 ft.lbs) torque. According to our records engine heat of the MV Agusta F4 RR is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, CrMo Steel Tubular Trellis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The MV Agusta F4 RR was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
