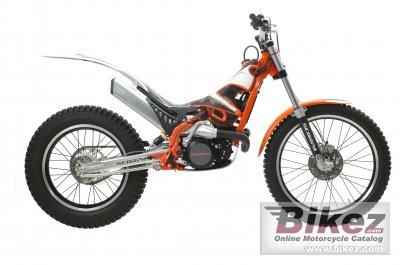

2012 Scorpa SR 280 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Scorpa SR 280.

Basic Specs

Year2012
MakeScorpa
ModelScorpa SR 280
TypeTrial
Cost

Engine

Displacement272.00 ccm (16.60 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke76.0 x 60.0 mm (3.0 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHBL 26BL
IgnitionC.D.I.
Exhaust
Lubrication2% mixture
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet multidisk
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity2.60 litres (0.69 gallons)
Emissions

Chassis

Frame TypeSteel tube
Rake
Trail
Front SuspensionMarzocchi 40 mm hydraulic fork, adjustable compression and rebond damping
Front Travel177 mm (7.0 inches)
Rear SuspensionSachs adjustable hydraulic monoshock
Rear Travel165 mm (6.5 inches)
Seat
Seat Height699 mm (27.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,050 mm (80.7 inches)
Total Width
Ground Clearance295 mm (11.6 inches)
Wheelbase1,345 mm (53.0 inches)
Dry Weight70.0 kg (154.3 pounds)
Wet Weight73.0 kg (160.9 pounds)

Wheels & Brakes

Front Tire/Tyre1.60-21
Rear Tire/Tyre2.15-18
Front BrakesSingle disc. Floating Wave disk with AJP 4-piston calipers
Front Brake Diameter182 mm (7.2 inches)
Rear BrakesSingle disc. Floating Wave disk with AJP 2-piston calipers
Rear Brake Diameter150 mm (5.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Scorpa SR 280. This Trial model is powered by a Single cylinder, two-stroke engine with 272.00 ccm (16.60 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Dell´Orto PHBL 26BL allowing this machine to produce its horsepower and torque. According to our records engine heat of the Scorpa SR 280 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 1.60-21 and the rear is 2.15-18 . The entire package is supported by the frame, Steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Floating Wave disk with AJP 4-piston calipers front brakes and Single disc. Floating Wave disk with AJP 2-piston calipers rear brakes. The Scorpa SR 280 was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

French made bike.
