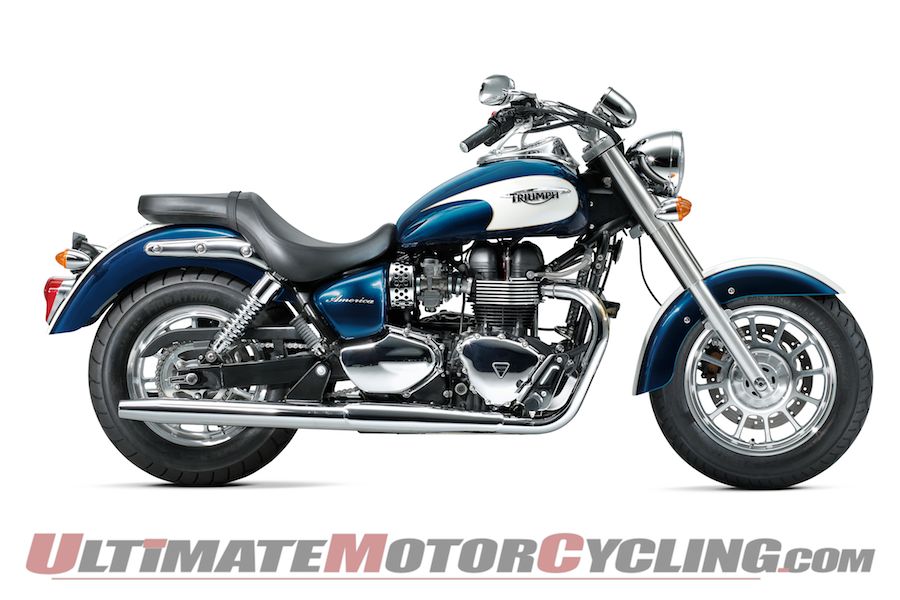

These are the known mechanical and performance specifications for your 2012 Triumph America.
Basic Specs


Year2012
MakeTriumph
ModelTriumph America
TypeCustom / cruiser
CostUS$ 8299. Prices depend on country, taxes, accessories, etc.
Engine
Displacement865.00 ccm (52.78 cubic inches)
Type270 degree firing interval
DetailsTwin, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke90.0 x 90.0 mm (3.5 x 3.5 inches)
Valves/Cylinder
FuelingInjection. Multipoint sequential electronic fuel injection with SAI
IgnitionDigital-inductive type via engine management system
ExhaustStainless steel twin-walled headers. twin chromed silencers
Lubrication
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet. multi-plate
DrivelineX ring chain
Performance
Horespower61.00 HP (44.5 kW)
Torque72.00 Nm (7.3 kgf-m or 53.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity19.30 litres (5.10 gallons)
Emissions
Chassis
Frame TypeTubular steel cradle
Rake33.0°
Trail
Front SuspensionKayaba 41mm forks with polished stainless steel shrouds and polished lowers. 120mm travel
Front Travel
Rear SuspensionKayaba chromed spring twin shocks with adjustable preload. 96mm rear wheel travel
Rear Travel
Seat
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,141 mm (44.9 inches)
Total Length2,420 mm (95.3 inches)
Total Width821 mm (32.3 inches)
Ground Clearance
Wheelbase1,617 mm (63.7 inches)
Dry Weight
Wet Weight250.0 kg (551.2 pounds)
Wheels & Brakes
Front Tire/Tyre130/90-R16
Rear Tire/Tyre170/80-B15
Front BrakesSingle disc. Nissin 2-piston floating caliper
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Nissin 2-piston floating caliper
Rear Brake Diameter285 mm (11.2 inches)
WheelsCast aluminium alloy 12-spoke
