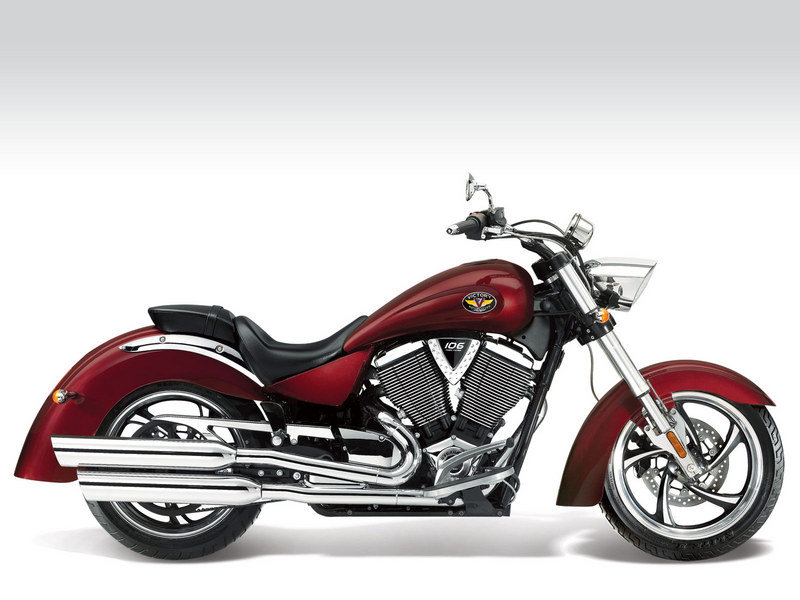

These are the known mechanical and performance specifications for your 2012 Victory Kingpin.
Basic Specs
Year2012
MakeVictory
ModelVictory Kingpin
TypeCustom / cruiser
CostUS$ 14999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1737.14 ccm (106.00 cubic inches)
Type50 degree V-Twin. Self-adjusting cam chains, hydraulic lifters.
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke101.0 x 108.0 mm (4.0 x 4.3 inches)
Valves/Cylinder4
FuelingInjection. Dual 45mm throttle body
Ignition
ExhaustStaggered slash-cut dual exhaust with crossover
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchWet, multi-plate
DrivelineCarbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator.
Performance
Horespower97.00 HP (70.8 kW)
Torque153.23 Nm (15.6 kgf-m or 113.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.03 litres (4.50 gallons)
Emissions
Chassis
Frame Type
Rake32.8°
Trail137 mm (5.4 inches)
Front SuspensionInverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Front Travel
Rear SuspensionSingle, mono-tube gas, cast aluminum with rising rate linkage, 3.9 in / 100 mm travel, preload adjustable spring
Rear Travel
Seat
Seat Height673 mm (26.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,537 mm (99.9 inches)
Total Width
Ground Clearance147 mm (5.8 inches)
Wheelbase1,666 mm (65.6 inches)
Dry Weight302.1 kg (666.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/70-B18
Rear Tire/Tyre180/55-B18
Front BrakesDouble disc. Floating rotor with 4-piston calipers
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Floating rotor with 2-piston caliper
Rear Brake Diameter300 mm (11.8 inches)
Wheels
Comments
