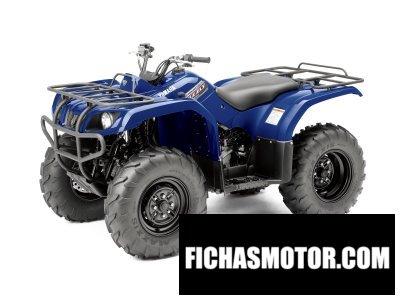

These are the known mechanical and performance specifications for your 2012 Yamaha Grizzly 350 Auto 4x4 IRS.
Basic Specs


Year2012
MakeYamaha
ModelYamaha Grizzly 350 Auto 4x4 IRS
TypeATV
CostUS$ 6649. Prices depend on country, taxes, accessories, etc.
Engine
Displacement348.00 ccm (21.23 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke83.0 x 64.5 mm (3.3 x 2.5 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni 33mm BSR
IgnitionDC-CDI
Exhaust
Lubrication
CoolingOil & air
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
DrivelineYamaha On-Command pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity14.38 litres (3.80 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent double wishbone
Front Travel
Rear SuspensionIndependent double wishbone
Rear Travel
Seat
Seat Height831 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length1,994 mm (78.5 inches)
Total Width1,095 mm (43.1 inches)
Ground Clearance244 mm (9.6 inches)
Wheelbase1,234 mm (48.6 inches)
Dry Weight
Wet Weight274.9 kg (606.0 pounds)
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc. Hydraulic
Front Brake Diameter
Rear BrakesSealed multidisc
Rear Brake Diameter
Wheels
Comments
