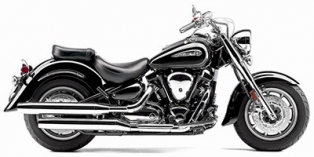

These are the known mechanical and performance specifications for your 2012 Yamaha Road Star S.
Basic Specs
Year2012
MakeYamaha
ModelYamaha Road Star S
TypeCustom / cruiser
CostUS$ 13490. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1671.58 ccm (102.00 cubic inches)
Type48-degree V-twin. Hydraulic valve lifters driven by twin camshafts .
DetailsV2, four-stroke
Max RPM
Compression8.3:1
Bore/Stroke97.0 x 113.0 mm (3.8 x 4.4 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTCI
Exhaust
LubricationDry sump
CoolingAir
Fuel Economy & Polution
Fuel Consumption6.53 litres/100 km (15.3 km/l or 36.02 mpg)
Fuel Capacity18.17 litres (4.80 gallons)
Emissions151.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeSteel; hidden shock
Rake29.0°
Trail102 mm (4.0 inches)
Front Suspension43mm fork
Front Travel140 mm (5.5 inches)
Rear SuspensionSingle shock
Rear Travel109 mm (4.3 inches)
Seat
Seat Height709 mm (27.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,140 mm (44.9 inches)
Total Length2,499 mm (98.4 inches)
Total Width980 mm (38.6 inches)
Ground Clearance145 mm (5.7 inches)
Wheelbase1,689 mm (66.5 inches)
Dry Weight
Wet Weight337.0 kg (743.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/90-16
Rear Tire/Tyre150/80-16
Front BrakesDouble disc
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter320 mm (12.6 inches)
Wheels9-spoke cast
