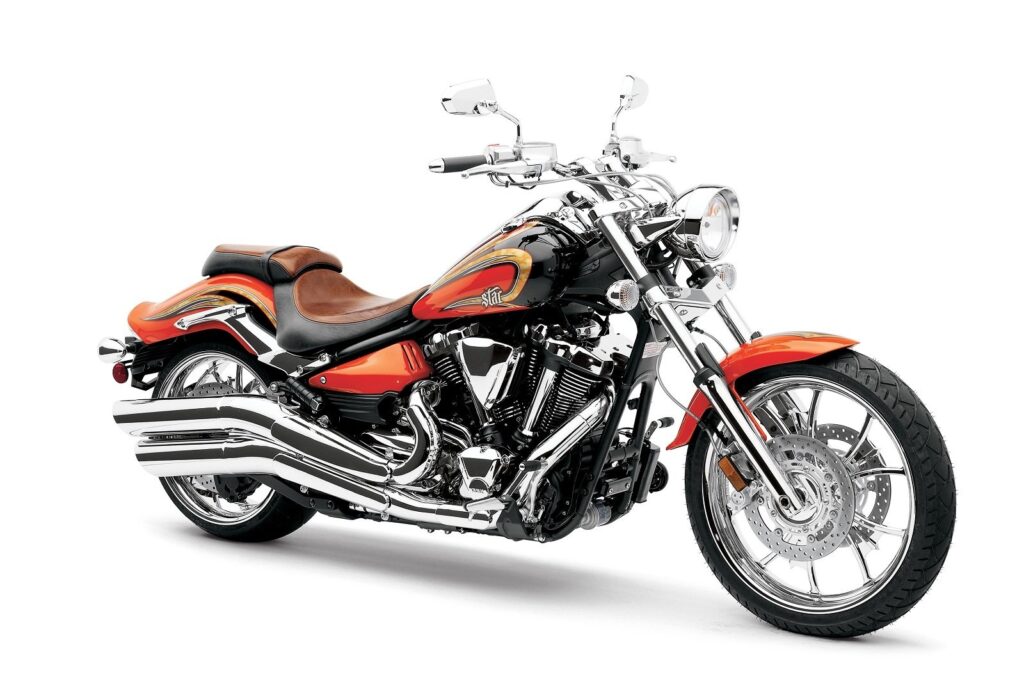

These are the known mechanical and performance specifications for your 2012 Yamaha Star Raider SCL.
Basic Specs


Year2012
MakeYamaha
ModelYamaha Star Raider SCL
TypeCustom / cruiser
CostUS$ 19990. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1851.85 ccm (113.00 cubic inches)
Type48° V-twin. Ceramic-composite plated cylinders.
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke100.0 x 118.0 mm (3.9 x 4.6 inches)
Valves/Cylinder
FuelingInjection. Computer-controlled, twin-bore fuel injection monitors multiple engine parameters to calculate perfect mixture under all conditions; wide-angle 12-hole fuel injectors provide excellent atomization.
IgnitionTCI: Transistor Controlled Ignition
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity15.90 litres (4.20 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeDouble cradle. All-aluminum cast frame.
Rake29.0°
Trail102 mm (4.0 inches)
Front SuspensionTelescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionSwingarm
Rear Travel89 mm (3.5 inches)
SeatSculpted seat
Seat Height696 mm (27.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,166 mm (45.9 inches)
Total Length2,570 mm (101.2 inches)
Total Width925 mm (36.4 inches)
Ground Clearance147 mm (5.8 inches)
Wheelbase1,801 mm (70.9 inches)
Dry Weight
Wet Weight331.1 kg (729.9 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-21
Rear Tire/Tyre210/40-18
Front BrakesDouble disc. Hydraulic
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter310 mm (12.2 inches)
Wheels5-spoke cast
