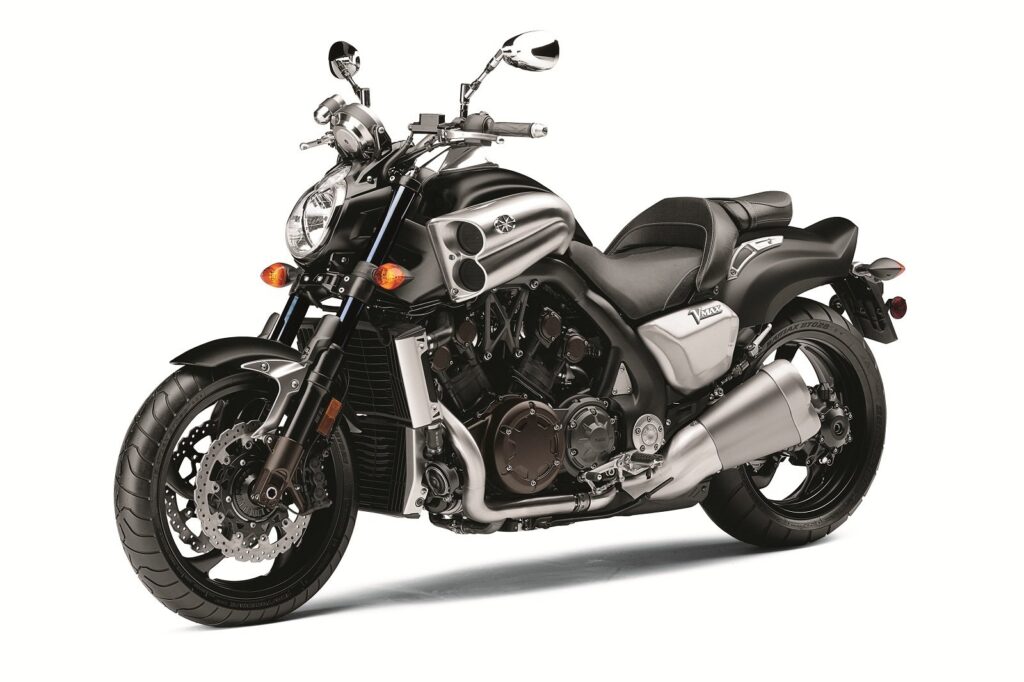

These are the known mechanical and performance specifications for your 2012 Yamaha VMAX.
Basic Specs
Year2012
MakeYamaha
ModelYamaha VMAX
TypeNaked bike
CostUS$ 19890. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1679.00 ccm (102.45 cubic inches)
TypeForged aluminum pistons and NGK® Iridium spark plugs with R1-type direct ignition coils
DetailsV4, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke90.0 x 66.0 mm (3.5 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. Fuel Injection with YCC-T and YCC-I
IgnitionTCI: Transistor Controlled Ignition
Exhaust
LubricationWet sump
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchWet, Multiple-disc diaphragm spring
DrivelineConstant Mesh
Performance
Horespower200.00 HP (146.0 kW)
Torque166.80 Nm (17.0 kgf-m or 123.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption8.71 litres/100 km (11.5 km/l or 27.01 mpg)
Fuel Capacity15.14 litres (4.00 gallons)
Emissions202.1 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeLightweight aluminum
Rake31.0°
Trail147 mm (5.8 inches)
Front Suspension52mm telescopic cartridge fork w/oxidized titanium coating. Fully adjustable preload, compression and rebound
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle shock w/remote reservoir and remote adjustable for preload, compression and rebound
Rear Travel110 mm (4.3 inches)
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,189 mm (46.8 inches)
Total Length2,395 mm (94.3 inches)
Total Width820 mm (32.3 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,700 mm (66.9 inches)
Dry Weight
Wet Weight310.0 kg (683.4 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-R18
Rear Tire/Tyre200/50-R18
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter298 mm (11.7 inches)
Wheels
