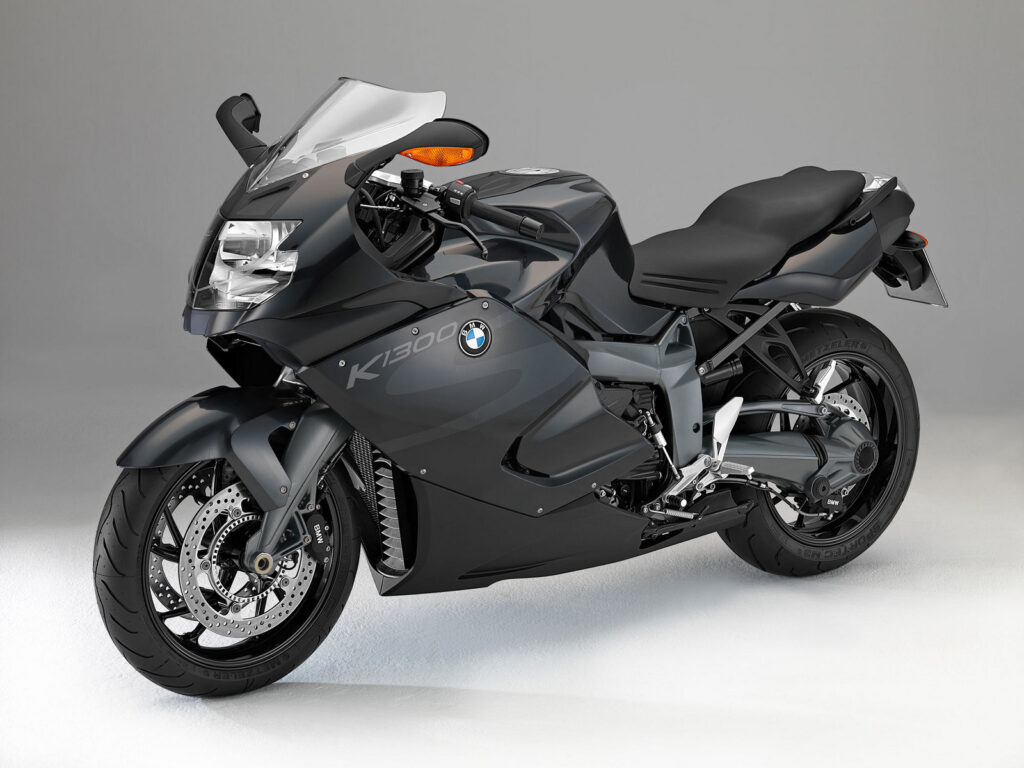

2013 BMW K 1300 S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 BMW K 1300 S.

Basic Specs

Year2013
MakeBMW
ModelBMW K 1300 S
TypeSport
CostUS$ 15555. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1293.00 ccm (78.90 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke80.0 x 64.3 mm (3.1 x 2.5 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)
Ignition
Exhaust
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchMultiple-disc clutch in oil bath, hydraulically operated
DrivelineConstant mesh

Performance

Horespower175.00 HP (127.7 kW)
Torque103.00 Nm (10.5 kgf-m or 76.0 ft.lbs)
Top Speed201.2 km/h (125.0 mph)

Fuel Economy & Polution

Fuel Consumption4.70 litres/100 km (21.3 km/l or 50.05 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions109.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeBridge-type frame, cast aluminum, load-bearing engine
Rake29.6°
Trail104 mm (4.1 inches)
Front SuspensionBMW Motorrad Duolever
Front Travel114 mm (4.5 inches)
Rear SuspensionCast aluminum single-sided swing arm with BMW Motorrad Paralever
Rear Travel135 mm (5.3 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,219 mm (48.0 inches)
Total Length2,182 mm (85.9 inches)
Total Width904 mm (35.6 inches)
Ground Clearance
Wheelbase1,585 mm (62.4 inches)
Dry Weight228.2 kg (503.0 pounds)
Wet Weight254.0 kg (560.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre190/55-17
Front BrakesDouble disc. Floating discs. Four-piston calipers. ABS.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Floating disc. Two-piston calipers. ABS.
Rear Brake Diameter265 mm (10.4 inches)
WheelsCast aluminum

Comments

It appears you're interested in specifications for the BMW K 1300 S. This Sport model is powered by a In-line four, four-stroke engine with 1293.00 ccm (78.90 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K) allowing this machine to produce its 175.00 HP (127.7 kW) horsepower and 103.00 Nm (10.5 kgf-m or 76.0 ft.lbs) torque. According to our records engine heat of the BMW K 1300 S is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 190/55-17 . The entire package is supported by the frame, Bridge-type frame, cast aluminum, load-bearing engine. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs. Four-piston calipers. ABS. front brakes and Single disc. Floating disc. Two-piston calipers. ABS. rear brakes. The BMW K 1300 S was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
