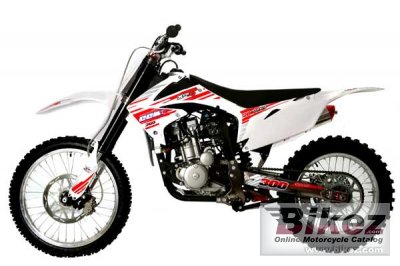

These are the known mechanical and performance specifications for your 2013 CCM XTR-4 300.
Basic Specs
Engine
Displacement300.00 ccm (18.31 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke78.0 x 61.2 mm (3.1 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor. SU Mikuni 34mm
Ignition
ExhaustSport design / baffle / no fiber
LubricationPressure pump feed
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions
Chassis
Frame TypeChrome molly
Rake28.0°
Trail
Front SuspensionSPX race forks
Front Travel245 mm (9.6 inches)
Rear SuspensionRebound / compression / preload
Rear Travel240 mm (9.4 inches)
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height925 mm (36.4 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width
Ground Clearance280 mm (11.0 inches)
Wheelbase1,505 mm (59.3 inches)
Dry Weight124.0 kg (273.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.50-21
Rear Tire/Tyre3.00-18
Front BrakesSingle disc. Hydraulic
Front Brake Diameter
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter
Wheels
Comments
CCM is an abbreviation of Clews Competition Motorcycles,a British motorcycle manufacturer founded when BSA´s Competition Department collapsed in 1971.
