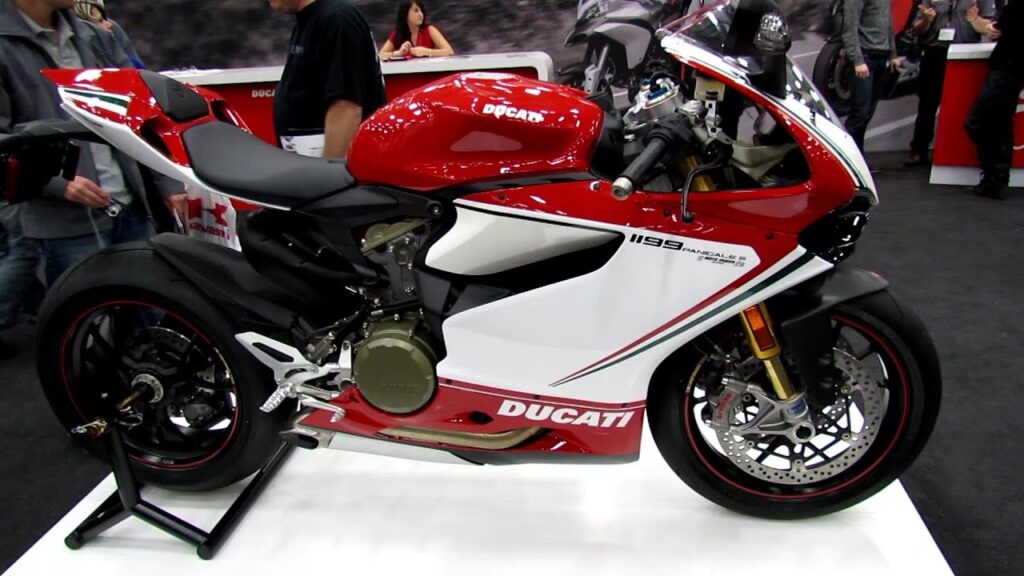

2013 Ducati 1199 Panigale S Tricolore Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Ducati 1199 Panigale S Tricolore.

Basic Specs

Year2013
MakeDucati
ModelDucati 1199 Panigale S Tricolore
TypeSport
Cost

Engine

Displacement1198.00 ccm (73.10 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke112.0 x 60.8 mm (4.4 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.
Ignition
Exhaust2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
DrivelineChain 525; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears, Ratio 1.77.

Performance

Horespower195.00 HP (142.3 kW)
Torque133.02 Nm (13.6 kgf-m or 98.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeMonocoque Aluminium
Rake24.0°
Trail100 mm (3.9 inches)
Front SuspensionOhlins NIX30 43mm with TiN, fully adjustable usd fork. Electronic compression and rebound damping adjustment
Front Travel
Rear SuspensionFully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm.
Rear Travel
Seat
Seat Height825 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,437 mm (56.6 inches)
Dry Weight166.5 kg (367.1 pounds)
Wet Weight188.0 kg (414.5 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/55-ZR17
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. Two-piston calipers.
Rear Brake Diameter245 mm (9.6 inches)
Wheels3 spoke forged light alloy

Comments

It appears you're interested in specifications for the Ducati 1199 Panigale S Tricolore. This Sport model is powered by a V2, four-stroke engine with 1198.00 ccm (73.10 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Injection. Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. allowing this machine to produce its 195.00 HP (142.3 kW) horsepower and 133.02 Nm (13.6 kgf-m or 98.1 ft.lbs) torque. According to our records engine heat of the Ducati 1199 Panigale S Tricolore is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 200/55-ZR17 . The entire package is supported by the frame, Monocoque Aluminium. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. front brakes and Single disc. Two-piston calipers. rear brakes. The Ducati 1199 Panigale S Tricolore was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
