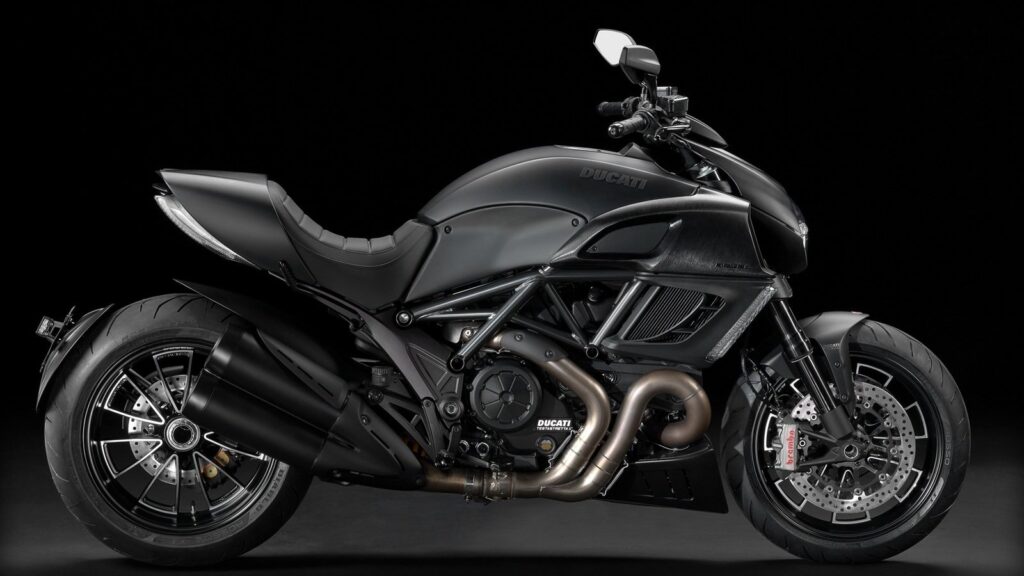

2013 Ducati Diavel Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Ducati Diavel.

Basic Specs

Year2013
MakeDucati
ModelDucati Diavel
Cost

Engine

Displacement1198.40 ccm (73.13 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke106.0 x 67.9 mm (4.2 x 2.7 inches)
Valves/Cylinder
FuelingInjection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Ignition
ExhaustLightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchLight action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
DrivelineFront sprocket 15; Rear sprocket 43. Primary drive: Straight cut gears, ratio 1.84.

Performance

Horespower159.58 HP (116.5 kW)
Torque127.50 Nm (13.0 kgf-m or 94.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeTubular steel Trellis frame
Rake28.0°
Trail130 mm (5.1 inches)
Front SuspensionMarzocchi 50mm fully adjustable usd forks
Front Travel
Rear SuspensionProgressive linkage with fully adjustable Sachs monoshock. Remote spring preload adjustment. Aluminium single-sided swingarm
Rear Travel
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,590 mm (62.6 inches)
Dry Weight210.0 kg (463.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre240/45-ZR17
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating disc. Two-piston calipers.
Rear Brake Diameter265 mm (10.4 inches)
Wheels14-spoke in light alloy

Comments

It appears you're interested in specifications for the Ducati Diavel. This Naked bike model is powered by a V2, four-stroke engine with 1198.40 ccm (73.13 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW allowing this machine to produce its 159.58 HP (116.5 kW) horsepower and 127.50 Nm (13.0 kgf-m or 94.0 ft.lbs) torque. According to our records engine heat of the Ducati Diavel is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 240/45-ZR17 . The entire package is supported by the frame, Tubular steel Trellis frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. front brakes and Single disc. ABS. Floating disc. Two-piston calipers. rear brakes. The Ducati Diavel was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
