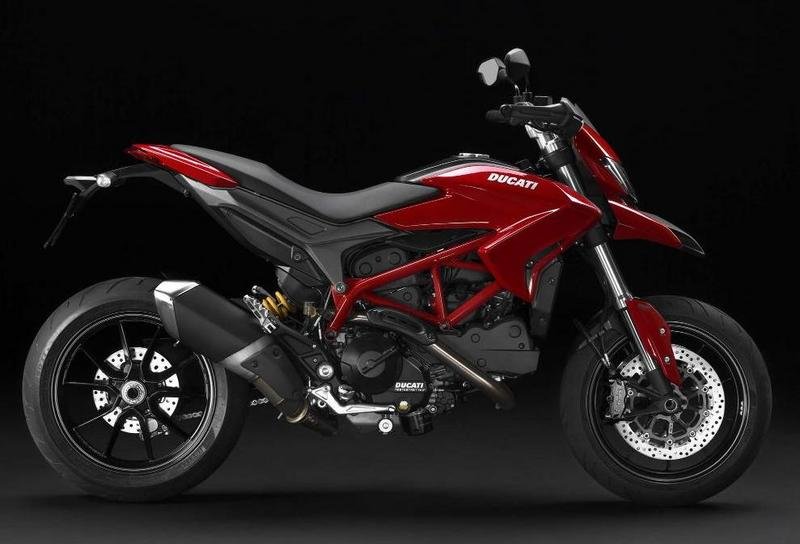

2013 Ducati Hypermotard Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Ducati Hypermotard.

Basic Specs

Year2013
MakeDucati
ModelDucati Hypermotard
Cost

Engine

Displacement821.10 ccm (50.10 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression12.8:1
Bore/Stroke88.0 x 67.5 mm (3.5 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. Magneti Marelli electronic fuel injection system. Throttle bodies with full Ride by Wire system
Ignition
ExhaustSingle stainless steel muffler with catalytic converter and two lambda probes.
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchSlipper and self-servo wet multiplate clutch mechanically operated
DrivelineChain, Front sprocket 15, Rear sprocket 45. Primary drive: Straight cut gears, Ratio 1.85.

Performance

Horespower110.00 HP (80.3 kW)
Torque89.00 Nm (9.1 kgf-m or 65.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions

Chassis

Frame TypeTubular steel Trellis frame
Rake25.5°
Trail104 mm (4.1 inches)
Front Suspension43mm usd forks
Front Travel
Rear SuspensionProgressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
Rear Travel
Seat
Seat Height870 mm (34.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,500 mm (59.1 inches)
Dry Weight175.0 kg (385.8 pounds)
Wet Weight198.0 kg (436.5 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Two-piston calipers.
Rear Brake Diameter245 mm (9.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Ducati Hypermotard. This Super motard model is powered by a V2, four-stroke engine with 821.10 ccm (50.10 cubic inches) of actual displacement before 12.8:1 compression. Fueling is metered via Injection. Magneti Marelli electronic fuel injection system. Throttle bodies with full Ride by Wire system allowing this machine to produce its 110.00 HP (80.3 kW) horsepower and 89.00 Nm (9.1 kgf-m or 65.6 ft.lbs) torque. According to our records engine heat of the Ducati Hypermotard is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Tubular steel Trellis frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. front brakes and Single disc. ABS. Two-piston calipers. rear brakes. The Ducati Hypermotard was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
