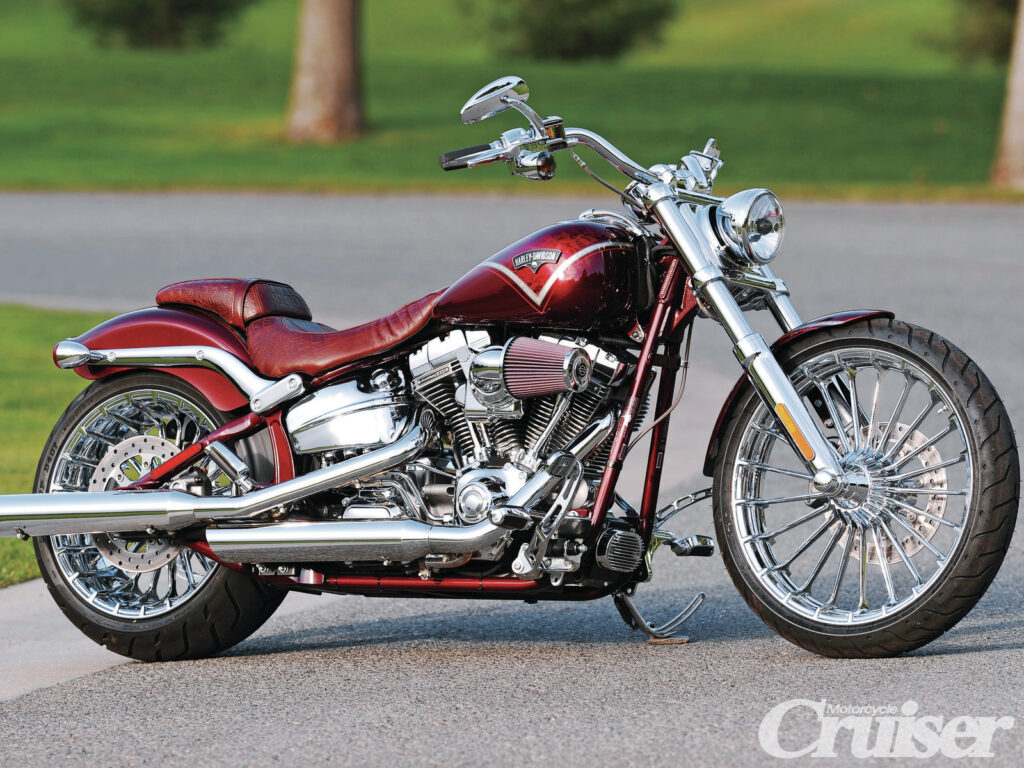

2013 Harley-Davidson CVO Breakout Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Harley-Davidson CVO Breakout.

Basic Specs

Year2013
MakeHarley-Davidson
ModelHarley-Davidson CVO Breakout
CostUS$ 26499. Euro 21495. UK £ 21495. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1802.69 ccm (110.00 cubic inches)
TypeAir-cooled, Twin Cam 110B™
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.3 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustChrome, shorty-dual exhaust w/ slashdown chrome mufflers and chrome heat shields
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower
Torque151.87 Nm (15.5 kgf-m or 112.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.23 litres/100 km (19.1 km/l or 44.98 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions121.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake37.0°
Trail145 mm (5.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height630 mm (24.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,446 mm (96.3 inches)
Total Width
Ground Clearance107 mm (4.2 inches)
Wheelbase1,709 mm (67.3 inches)
Dry Weight316.6 kg (698.0 pounds)
Wet Weight330.2 kg (728.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-B21
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsMirror Chrome Turbine Custom Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson CVO Breakout. This Custom / cruiser model is powered by a Air-cooled, Twin Cam 110B™ V2, four-stroke engine with 1802.69 ccm (110.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and 151.87 Nm (15.5 kgf-m or 112.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson CVO Breakout is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/60-B21 and the rear is 240/40-R18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Harley-Davidson CVO Breakout was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

CVO is HD´s Custom Vehicle Operation
