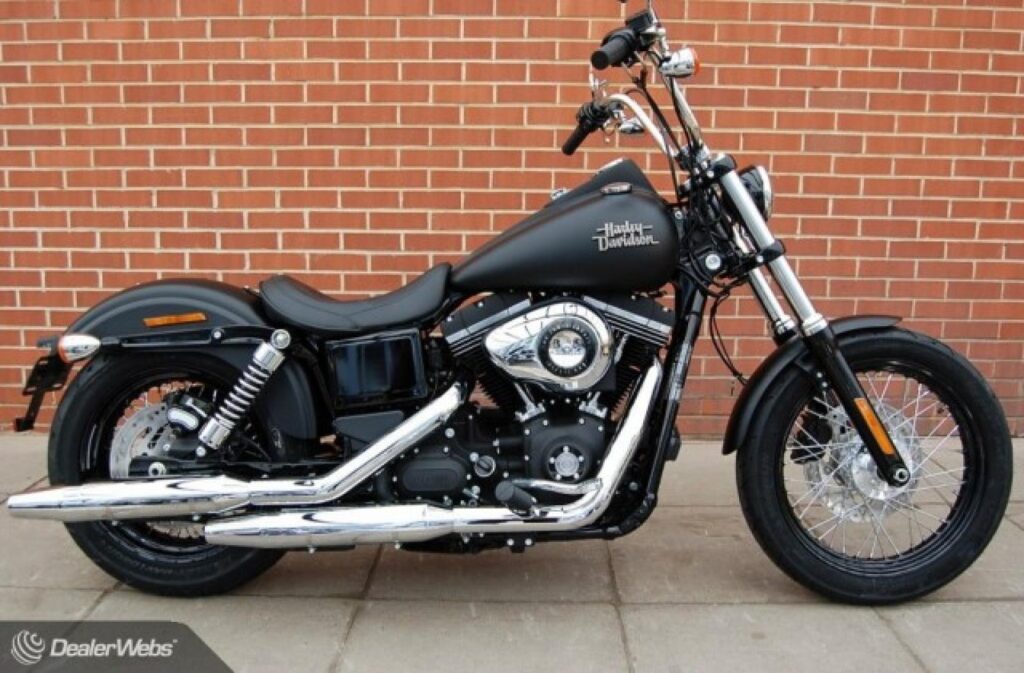

2013 Harley-Davidson Dyna Street Bob Dark Custom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Harley-Davidson Dyna Street Bob Dark Custom.

Basic Specs

Year2013
MakeHarley-Davidson
ModelHarley-Davidson Dyna Street Bob Dark Custom
CostUS$ 12999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1573.25 ccm (96.00 cubic inches)
TypeAir-cooled, Twin Cam 96™
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.3 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustChrome, staggered, straight-cut shorty exhaust WITH DUAL mufflers
LubricationDry sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower
Torque124.75 Nm (12.7 kgf-m or 92.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Fuel Capacity17.79 litres (4.70 gallons)
Emissions126.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake29.0°
Trail119 mm (4.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,357 mm (92.8 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,631 mm (64.2 inches)
Dry Weight289.9 kg (639.0 pounds)
Wet Weight304.8 kg (672.0 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-H19
Rear Tire/Tyre160/70-V17
Front BrakesSingle disc. Dual-piston
Front Brake Diameter
Rear BrakesSingle disc. Single-piston
Rear Brake Diameter
WheelsBlack, Laced Steel

Comments

It appears you're interested in specifications for the Harley-Davidson Dyna Street Bob Dark Custom. This Custom / cruiser model is powered by a Air-cooled, Twin Cam 96™ V2, four-stroke engine with 1573.25 ccm (96.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. ESPFI allowing this machine to produce its horsepower and 124.75 Nm (12.7 kgf-m or 92.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Dyna Street Bob Dark Custom is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/90-H19 and the rear is 160/70-V17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual-piston front brakes and Single disc. Single-piston rear brakes. The Harley-Davidson Dyna Street Bob Dark Custom was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
