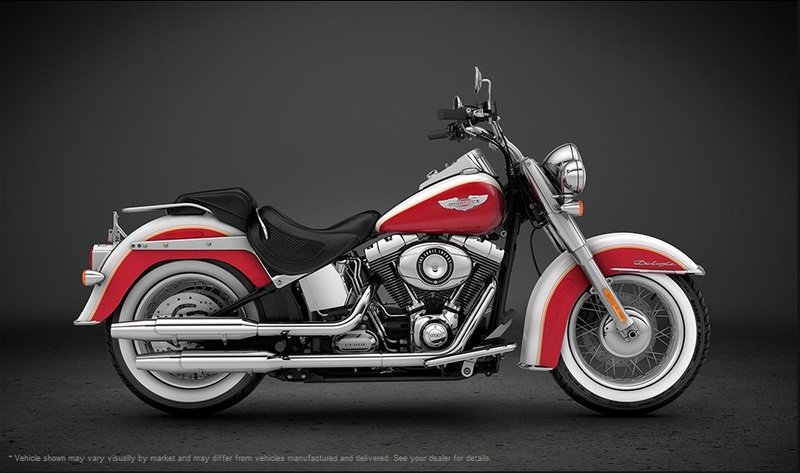

2013 Harley-Davidson Softail Deluxe Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Harley-Davidson Softail Deluxe.

Basic Specs

Year2013
MakeHarley-Davidson
ModelHarley-Davidson Softail Deluxe
CostUS$ 17399. Euro 20445. UK £ 15695. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled, Twin Cam 103B™
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, straight over/under shotgun exhaust with dual tapered mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio

Performance

Horespower
Torque133.84 Nm (13.6 kgf-m or 98.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake32.1°
Trail147 mm (5.8 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height622 mm (24.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,405 mm (94.7 inches)
Total Width
Ground Clearance122 mm (4.8 inches)
Wheelbase1,638 mm (64.5 inches)
Dry Weight313.0 kg (690.0 pounds)
Wet Weight330.2 kg (728.0 pounds)

Wheels & Brakes

Front Tire/TyreMT90-16
Rear Tire/TyreMU85-B16
Front BrakesSingle disc. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter
WheelsSteel Laced

Comments

It appears you're interested in specifications for the Harley-Davidson Softail Deluxe. This Custom / cruiser model is powered by a Air-cooled, Twin Cam 103B™ V2, four-stroke engine with 1687.97 ccm (103.00 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 133.84 Nm (13.6 kgf-m or 98.7 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Softail Deluxe is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MT90-16 and the rear is MU85-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston front brakes and Single disc. 2-piston rear brakes. The Harley-Davidson Softail Deluxe was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
