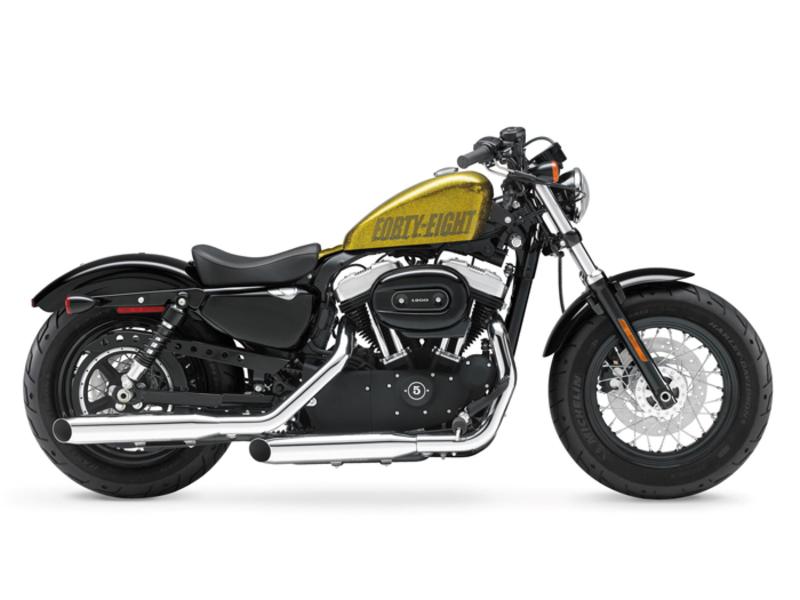

These are the known mechanical and performance specifications for your 2013 Harley-Davidson Sportster Forty-Eight.
Basic Specs
Year2013
MakeHarley-Davidson
ModelHarley-Davidson Sportster Forty-Eight
TypeCustom / cruiser
CostUS$ 10599. Euro 10795. UK £ 8895. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1201.25 ccm (73.30 cubic inches)
TypeAir-cooled, Evolution®
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustE Type 9
LubricationDry sump
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline57/38 ratio
Performance
Horespower
Torque107.12 Nm (10.9 kgf-m or 79.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity7.95 litres (2.10 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake
Trail107 mm (4.2 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,250 mm (88.6 inches)
Total Width
Ground Clearance99 mm (3.9 inches)
Wheelbase1,519 mm (59.8 inches)
Dry Weight250.8 kg (553.0 pounds)
Wet Weight259.9 kg (573.0 pounds)
Wheels & Brakes
Front Tire/Tyre150/80-16
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. Dual-piston
Front Brake Diameter
Rear BrakesSingle disc. Single-piston
Rear Brake Diameter
WheelsBlack, Laced Steel
