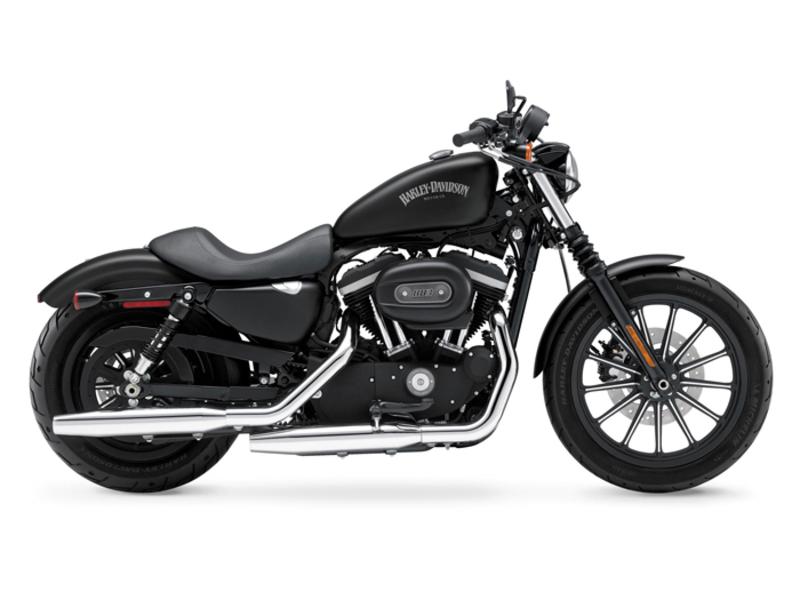

2013 Harley-Davidson Sportster Iron 833 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Harley-Davidson Sportster Iron 833.

Basic Specs

Year2013
MakeHarley-Davidson
ModelHarley-Davidson Sportster Iron 833
CostUS$ 7999. Euro 8535. UK £ 6695. Prices depend on country, taxes, accessories, etc.

Engine

Displacement883.32 ccm (53.90 cubic inches)
TypeAir-cooled, Evolution®
DetailsV2, four-stroke
Max RPM
Compression8.9:1
Bore/Stroke76.2 x 96.8 mm (3.0 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
LubricationDry sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline

Performance

Horespower
Torque74.58 Nm (7.6 kgf-m or 55.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.61 litres/100 km (21.7 km/l or 51.02 mpg)
Fuel Capacity12.49 litres (3.30 gallons)
Emissions107.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake30.5°
Trail117 mm (4.6 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height653 mm (25.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,179 mm (85.8 inches)
Total Width
Ground Clearance99 mm (3.9 inches)
Wheelbase1,519 mm (59.8 inches)
Dry Weight251.0 kg (553.3 pounds)
Wet Weight260.0 kg (573.2 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-B19
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsBlack, 13-Spoke Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Sportster Iron 833. This Custom / cruiser model is powered by a Air-cooled, Evolution® V2, four-stroke engine with 883.32 ccm (53.90 cubic inches) of actual displacement before 8.9:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 74.58 Nm (7.6 kgf-m or 55.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Sportster Iron 833 is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/90-B19 and the rear is 150/80-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Harley-Davidson Sportster Iron 833 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
