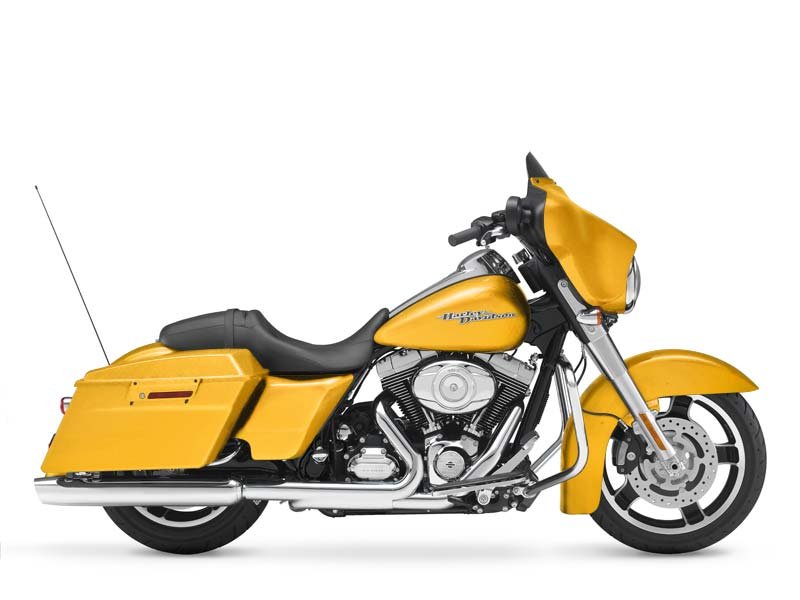

2013 Harley-Davidson Street Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Harley-Davidson Street Glide.

Basic Specs

Year2013
MakeHarley-Davidson
ModelHarley-Davidson Street Glide
CostUS$ 19799. Euro 22995. UK £ 17895. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1687.97 ccm (103.00 cubic inches)
TypeTwin Cam 103™ with Integrated Oil-Cooler
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower
Torque135.60 Nm (13.8 kgf-m or 100.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height663 mm (26.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,413 mm (95.0 inches)
Total Width
Ground Clearance119 mm (4.7 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight355.2 kg (783.0 pounds)
Wet Weight367.9 kg (811.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-BW18
Rear Tire/Tyre180/65-BW16
Front BrakesDouble disc. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter
WheelsBlack, Slotted 5-Spoke Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Street Glide. This Touring model is powered by a Twin Cam 103™ with Integrated Oil-Cooler V2, four-stroke engine with 1687.97 ccm (103.00 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection. ESPFI allowing this machine to produce its horsepower and 135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Street Glide is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/70-BW18 and the rear is 180/65-BW16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston front brakes and Single disc. 2-piston rear brakes. The Harley-Davidson Street Glide was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
