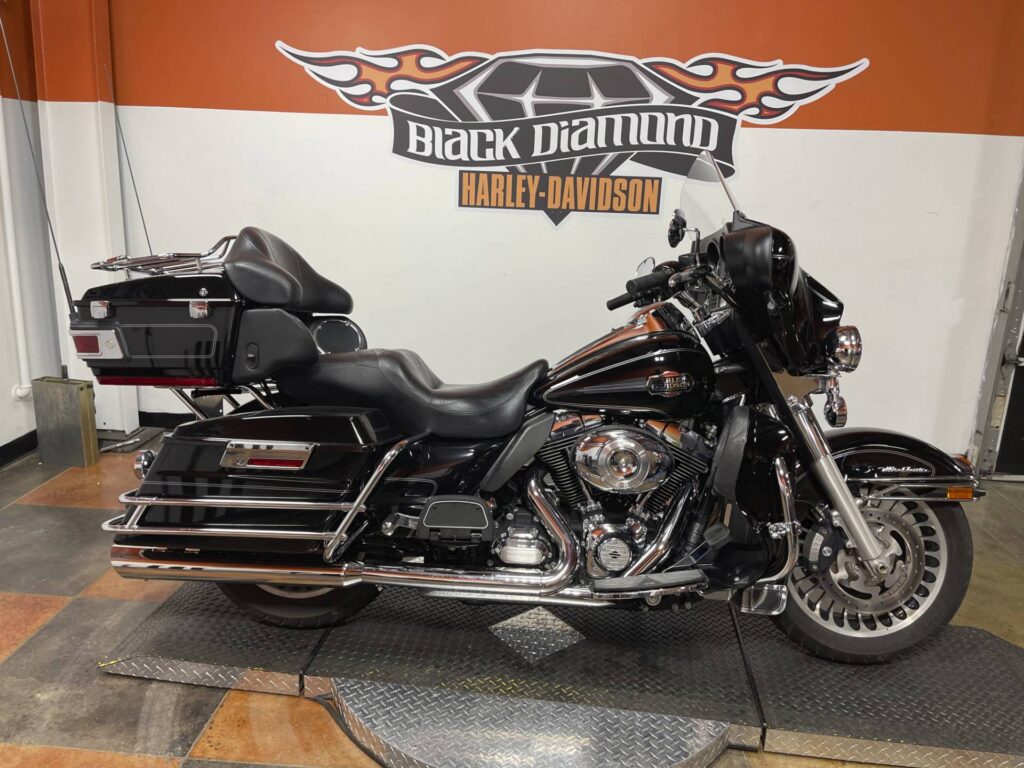

These are the known mechanical and performance specifications for your 2013 Harley-Davidson Ultra Classic Electra Glide.
Basic Specs
Year2013
MakeHarley-Davidson
ModelHarley-Davidson Ultra Classic Electra Glide
TypeTouring
CostUS$ 21799. Euro 25895. UK £ 19995. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled Twin Cam 103™ with Integrated Oil-Cooler
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower
Torque135.60 Nm (13.8 kgf-m or 100.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,504 mm (98.6 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight400.1 kg (882.0 pounds)
Wet Weight413.2 kg (911.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/80-NW17
Rear Tire/Tyre180/65-NW16
Front BrakesDouble disc. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter
WheelsBlack, 28-spoke Cast Aluminum
Comments
Windshield.
