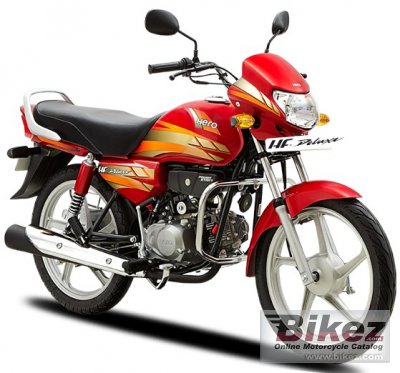

These are the known mechanical and performance specifications for your 2013 Hero HF Deluxe.
Basic Specs
Engine
Displacement97.20 ccm (5.93 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke50.0 x 49.5 mm (2.0 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionDigital CDI
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox4-speed
Final DriveChain
ClutchMultiplate, wet
DrivelineConstant mesh
Performance
Horespower7.80 HP (5.7 kW)
Torque8.00 Nm (0.8 kgf-m or 5.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity10.50 litres (2.77 gallons)
Emissions
Chassis
Frame TypeTubular double cradle
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSwing arm with 2 step adjustable hydraulic shockabsorber
Rear Travel
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,045 mm (41.1 inches)
Total Length1,965 mm (77.4 inches)
Total Width720 mm (28.3 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,235 mm (48.6 inches)
Dry Weight
Wet Weight112.0 kg (246.9 pounds)
Wheels & Brakes
Front Tire/Tyre2.75-18
Rear Tire/Tyre2.75-18
Front BrakesExpanding brake (drum brake)
Front Brake Diameter130 mm (5.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
WheelsWire spoke wheels , optional cast wheels
Comments
Optional self starter. Sold in India. Brand previously called Hero Honda.
