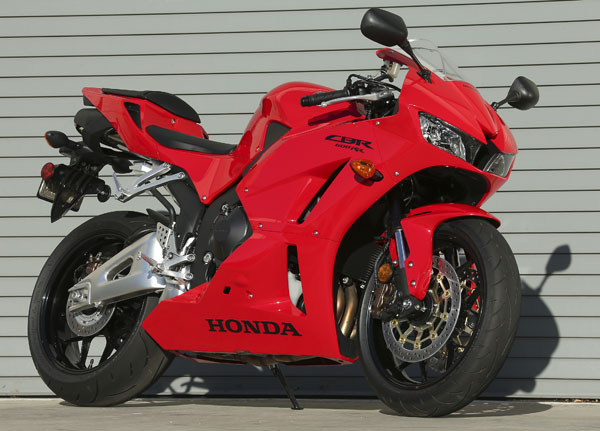

2013 Honda CBR600RR Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Honda CBR600RR.

Basic Specs

Year2013
MakeHonda
ModelHonda CBR600RR
TypeSport
CostUS$ 23990. Prices depend on country, taxes, accessories, etc.

Engine

Displacement599.00 ccm (36.55 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke67.0 x 42.5 mm (2.6 x 1.7 inches)
Valves/Cylinder4
FuelingInjection. Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
IgnitionComputer-controlled digital transistorized with 3-D mapping
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline#525 O-ring chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.17 litres (4.80 gallons)
Emissions

Chassis

Frame Type
Rake23.5°
Trail98 mm (3.8 inches)
Front Suspension41mm inverted Big Piston Fork with spring preload, rebound and compression damping adjustability
Front Travel
Rear SuspensionUnit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability
Rear Travel130 mm (5.1 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,369 mm (53.9 inches)
Dry Weight310.0 kg (683.4 pounds)
Wet Weight186.0 kg (410.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Four-piston calipers. Radially mounted.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CBR600RR. This Sport model is powered by a In-line four, four-stroke engine with 599.00 ccm (36.55 cubic inches) of actual displacement before 12.2:1 compression. Fueling is metered via Injection. Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CBR600RR is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Four-piston calipers. Radially mounted. front brakes and Single disc rear brakes. The Honda CBR600RR was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CBR600RR
