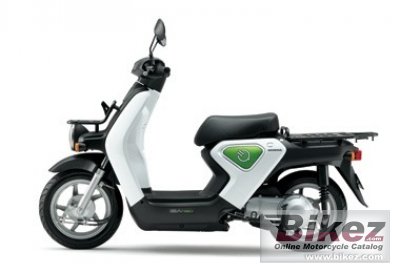

2013 Honda EV-neo Pro Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Honda EV-neo Pro.

Basic Specs

Year2013
MakeHonda
ModelHonda EV-neo Pro
Cost

Engine

Displacement
TypeAF71M AC synchronous motor.
DetailsElectric
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox
Final Drive
ClutchDry multi-plate
Driveline

Performance

Horespower3.75 HP (2.7 kW)
Torque11.00 Nm (1.1 kgf-m or 8.1 ft.lbs)
Top Speed28.0 km/h (17.4 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height756 mm (29.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,065 mm (41.9 inches)
Total Length
Total Width695 mm (27.4 inches)
Ground Clearance120 mm (4.7 inches)
Wheelbase1,250 mm (49.2 inches)
Dry Weight110.0 kg (242.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-12
Rear Tire/Tyre90/90-12
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda EV-neo Pro. This Scooter model is powered by a AF71M AC synchronous motor. Electric engine with of actual displacement before compression. Fueling is metered via allowing this machine to produce its 3.75 HP (2.7 kW) horsepower and 11.00 Nm (1.1 kgf-m or 8.1 ft.lbs) torque. According to our records engine heat of the Honda EV-neo Pro is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-12 and the rear is 90/90-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Honda EV-neo Pro was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Lithium-ion battery. Range 34 km. Sold in Japan.
