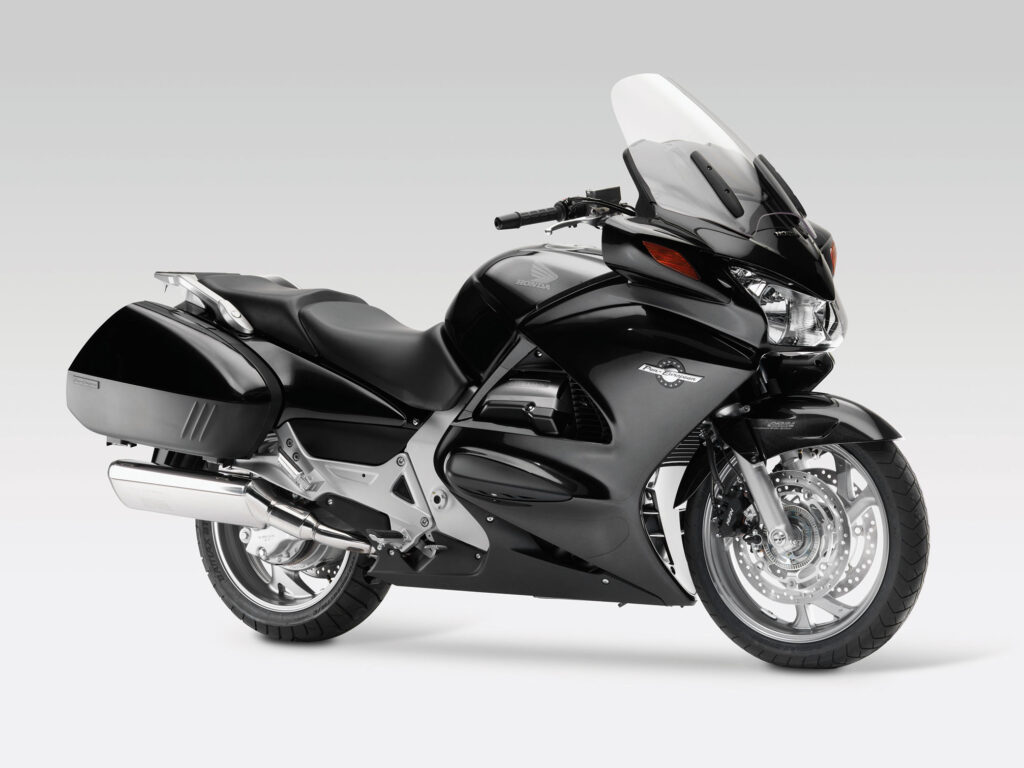

2013 Honda ST1300A Pan-European ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Honda ST1300A Pan-European ABS.

Basic Specs

Year2013
MakeHonda
ModelHonda ST1300A Pan-European ABS
CostUS$ 18230. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1261.00 ccm (76.95 cubic inches)
Type
DetailsV4, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke78.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector
IgnitionComputer-controlled digital with 3-D mapping and electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption6.72 litres/100 km (14.9 km/l or 35.00 mpg)
Fuel Capacity29.14 litres (7.70 gallons)
Emissions155.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail98 mm (3.9 inches)
Front Suspension45mm HMAS cartridge fork
Front Travel117 mm (4.6 inches)
Rear SuspensionHMAS gas-charged single shock with five-position spring-preload adjustability
Rear Travel122 mm (4.8 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,491 mm (58.7 inches)
Dry Weight
Wet Weight331.1 kg (730.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR18
Rear Tire/Tyre170/60-ZR17
Front BrakesDouble disc. ABS. Floating discs.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS.
Rear Brake Diameter316 mm (12.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda ST1300A Pan-European ABS. This Sport touring model is powered by a V4, four-stroke engine with 1261.00 ccm (76.95 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Injection. PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda ST1300A Pan-European ABS is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR18 and the rear is 170/60-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. front brakes and Single disc. ABS. rear brakes. The Honda ST1300A Pan-European ABS was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: ST1300A
