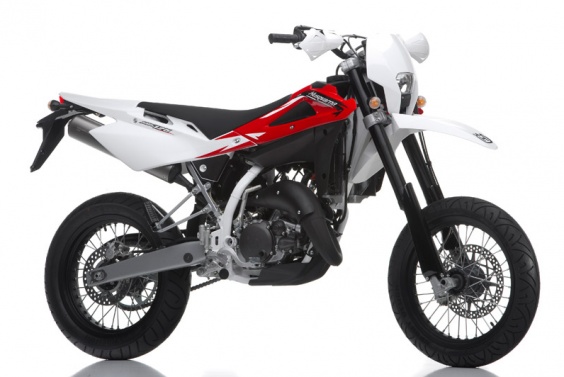

2013 Husqvarna SMS125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Husqvarna SMS125.

Basic Specs

Year2013
MakeHusqvarna
ModelHusqvarna SMS125
Cost

Engine

Displacement124.82 ccm (7.62 cubic inches)
TypeReed valve in the crankcase and
DetailsSingle cylinder, two-stroke
Max RPM
Compression8.8:1
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Dell Orto VHST28 Carburettor
IgnitionC.D.I. electronic, digital type, with adjustable advance
Exhaust
LubricationBy electrical pump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMulti plate, cable operation
Driveline6 speed constant mesh

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionMarzocchi 40mm USD
Front Travel260 mm (10.2 inches)
Rear SuspensionSachs adjustable shock absorber with Soft Damp linkage
Rear Travel272 mm (10.7 inches)
Seat
Seat Height929 mm (36.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,175 mm (46.3 inches)
Total Length2,145 mm (84.4 inches)
Total Width825 mm (32.5 inches)
Ground Clearance265 mm (10.4 inches)
Wheelbase1,462 mm (57.6 inches)
Dry Weight
Wet Weight111.0 kg (244.7 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre140/60-17
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna SMS125. This Super motard model is powered by a Reed valve in the crankcase and Single cylinder, two-stroke engine with 124.82 ccm (7.62 cubic inches) of actual displacement before 8.8:1 compression. Fueling is metered via Carburettor. Dell Orto VHST28 Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna SMS125 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 140/60-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Husqvarna SMS125 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
