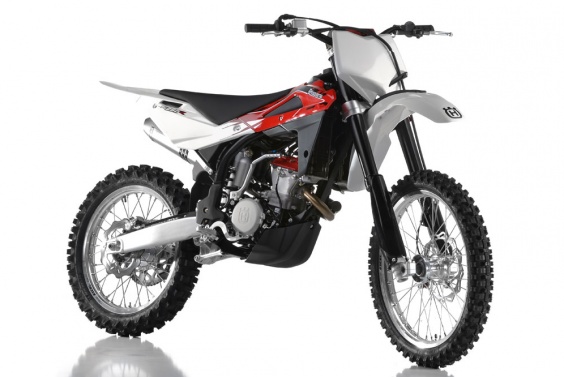

These are the known mechanical and performance specifications for your 2013 Husqvarna TC250R.
Basic Specs
Engine
Displacement249.50 ccm (15.22 cubic inches)
TypeTitanium valves in radial arrangement
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke79.0 x 50.9 mm (3.1 x 2.0 inches)
Valves/Cylinder
FuelingInjection. Keihin Digital Fuel Injection
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox
Final DriveChain
ClutchMulti plate, hydraulic operation
Driveline5 speed constant mesh
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions
Chassis
Frame TypeChromoly single tube frame cradle utilizes rounded-rectangle elliptical tubing
Rake
Trail111 mm (4.4 inches)
Front Suspension48mm Kayaba AOS
Front Travel300 mm (11.8 inches)
Rear SuspensionKayaba Multi Adjustable Shock with Soft Damp Linkage
Rear Travel296 mm (11.7 inches)
Seat
Seat Height985 mm (38.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,215 mm (87.2 inches)
Total Width820 mm (32.3 inches)
Ground Clearance325 mm (12.8 inches)
Wheelbase1,460 mm (57.5 inches)
Dry Weight100.0 kg (220.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre120/90-19
Front BrakesSingle disc. Wave disc.
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Wave disc.
Rear Brake Diameter240 mm (9.4 inches)
Wheels
