2013 Husqvarna WR125 Specs

motorcycle specs

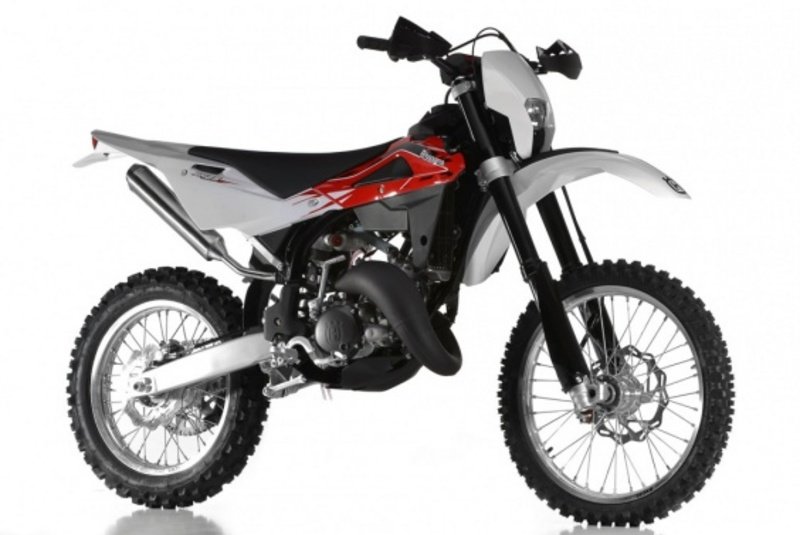

These are the known mechanical and performance specifications for your 2013 Husqvarna WR125.

Basic Specs

Year2013
MakeHusqvarna
ModelHusqvarna WR125
Cost

Engine

Displacement124.82 ccm (7.62 cubic inches)
TypePower valve with mechanical control on the exhaust port.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni TMX38 Carburettor
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final DriveChain
ClutchMulti plate, cable operation
Driveline6 speed constant mesh

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.10 litres (2.14 gallons)
Emissions

Chassis

Frame TypeChromoly single tube frame cradle utilizes rounded-rectangle elliptical tubing.
Rake26.5°
Trail110 mm (4.3 inches)
Front Suspension48mm Kayaba USD
Front Travel300 mm (11.8 inches)
Rear SuspensionSachs Multi Adjustable Shock with Soft Damp Linkage
Rear Travel295 mm (11.6 inches)
Seat
Seat Height975 mm (38.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,260 mm (89.0 inches)
Total Width840 mm (33.1 inches)
Ground Clearance325 mm (12.8 inches)
Wheelbase1,465 mm (57.7 inches)
Dry Weight101.0 kg (222.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc. Wave disc.
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Wave disc.
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna WR125. This Enduro / offroad model is powered by a Power valve with mechanical control on the exhaust port. Single cylinder, two-stroke engine with 124.82 ccm (7.62 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Mikuni TMX38 Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna WR125 is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 120/90-18 . The entire package is supported by the frame, Chromoly single tube frame cradle utilizes rounded-rectangle elliptical tubing.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Wave disc. front brakes and Single disc. Wave disc. rear brakes. The Husqvarna WR125 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Digital dash, street homologated.
