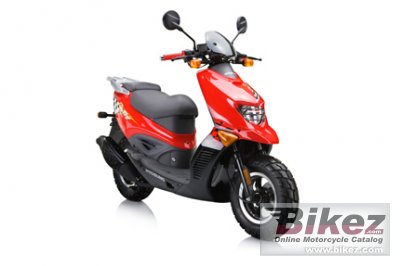

2013 Hyosung Rally Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Hyosung Rally.

Basic Specs

Year2013
MakeHyosung
ModelHyosung Rally
CostUS$ 1899. Prices depend on country, taxes, accessories, etc.

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression7.2:1
Bore/Stroke41.0 x 37.4 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchCentrifugal automatic clutch
DrivelineCVT

Performance

Horespower5.00 HP (3.6 kW)
Torque3.76 Nm (0.4 kgf-m or 2.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity4.73 litres (1.25 gallons)
Emissions

Chassis

Frame TypeSteel
Rake
Trail
Front SuspensionTelescopic
Front Travel
Rear Suspension Mono Shock Absorber
Rear Travel
Seat
Seat Height754 mm (29.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,844 mm (72.6 inches)
Total Width
Ground Clearance140 mm (5.5 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight88.0 kg (194.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/90-10
Rear Tire/Tyre130/90-10
Front BrakesSingle disc
Front Brake Diameter162 mm (6.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Hyosung Rally. This Scooter model is powered by a Single cylinder, two-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before 7.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 5.00 HP (3.6 kW) horsepower and 3.76 Nm (0.4 kgf-m or 2.8 ft.lbs) torque. According to our records engine heat of the Hyosung Rally is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/90-10 and the rear is 130/90-10 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Hyosung Rally was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Made in Korea.
