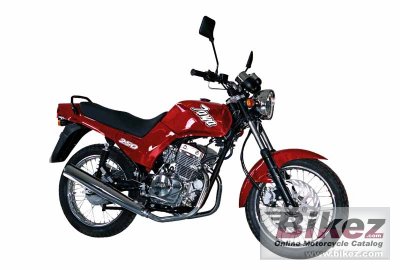

2013 Jawa-CZ 250 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Jawa-CZ 250.

Basic Specs

Year2013
MakeJawa-CZ
ModelJawa-CZ 250
TypeSport
Cost

Engine

Displacement233.90 ccm (14.27 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke53.0 x 53.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower17.43 HP (12.7 kW)
Torque17.30 Nm (1.8 kgf-m or 12.8 ft.lbs)
Top Speed120.0 km/h (74.6 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeSteel
Rake
Trail
Front SuspensionTelescopic forks
Front Travel150 mm (5.9 inches)
Rear SuspensionHydraulic telescopic
Rear Travel80 mm (3.1 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,350 mm (53.1 inches)
Dry Weight139.0 kg (306.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre3.25-18
Rear Tire/Tyre3.50-18
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter160 mm (6.3 inches)
WheelsWire-spoke wheels

Comments

It appears you're interested in specifications for the Jawa-CZ 250. This Sport model is powered by a Twin, four-stroke engine with 233.90 ccm (14.27 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 17.43 HP (12.7 kW) horsepower and 17.30 Nm (1.8 kgf-m or 12.8 ft.lbs) torque. According to our records engine heat of the Jawa-CZ 250 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 3.25-18 and the rear is 3.50-18 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Jawa-CZ 250 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
