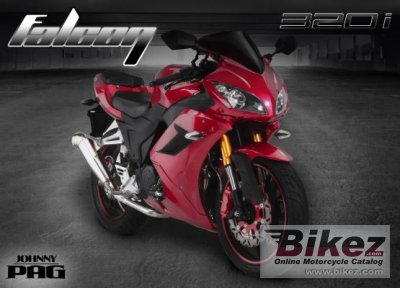

2013 Johnny Pag Falcon 320i Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Johnny Pag Falcon 320i.

Basic Specs

Year2013
MakeJohnny Pag
ModelJohnny Pag Falcon 320i
TypeSport
CostUS$ 3999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement320.00 ccm (19.53 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke54.0 x 62.0 mm (2.1 x 2.4 inches)
Valves/Cylinder2
FuelingInjection. EFI
IgnitionC.D.I.
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower23.80 HP (17.4 kW)
Torque18.50 Nm (1.9 kgf-m or 13.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption3.61 litres/100 km (27.7 km/l or 65.16 mpg)
Fuel Capacity13.24 litres (3.50 gallons)
Emissions83.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel, tubular
Rake38.0°
Trail
Front SuspensionAdjustable inverted front fork
Front Travel
Rear SuspensionAdjustable rear mono shock
Rear Travel
Seat
Seat Height508 mm (20.0 inches) If adjustable, lowest setting.
Alt. Seat Height584 mm (23.0 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width
Ground Clearance152 mm (6.0 inches)
Wheelbase1,651 mm (65.0 inches)
Dry Weight189.6 kg (418.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/70-18
Front BrakesDouble disc. Twin-piston
Front Brake Diameter
Rear BrakesSingle disc. Twin-piston
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Johnny Pag Falcon 320i. This Sport model is powered by a Twin, four-stroke engine with 320.00 ccm (19.53 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. EFI allowing this machine to produce its 23.80 HP (17.4 kW) horsepower and 18.50 Nm (1.9 kgf-m or 13.6 ft.lbs) torque. According to our records engine heat of the Johnny Pag Falcon 320i is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/70-18 . The entire package is supported by the frame, Steel, tubular. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Twin-piston front brakes and Single disc. Twin-piston rear brakes. The Johnny Pag Falcon 320i was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
